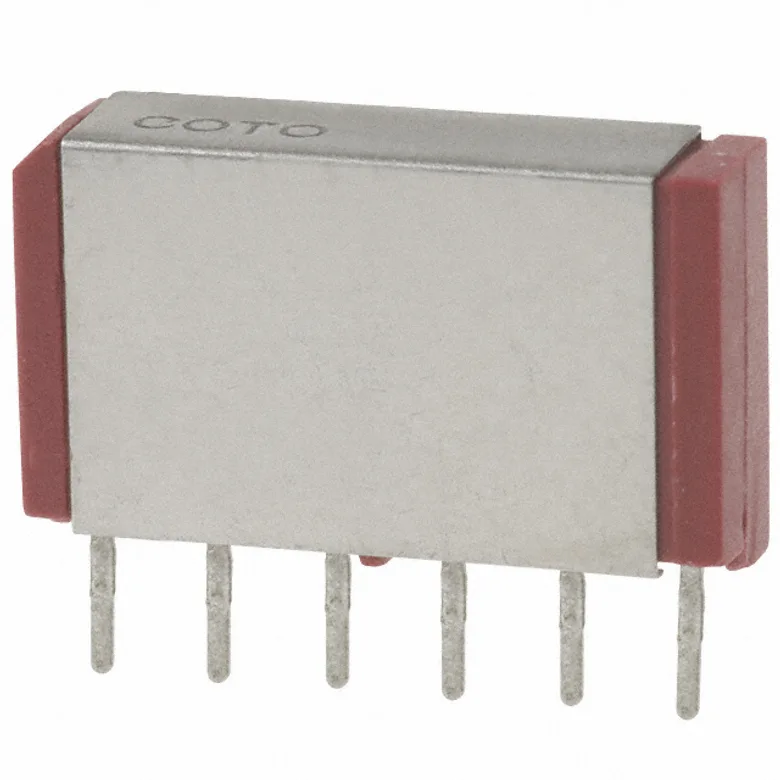

Coto Technology 9092-05-10
Manufacturer
Manufacturer Product Number
9092-05-10
Description
RELAY REED DPST 500MA 5V
Manufacturer Standard Lead Time Contact us
Detailed Description
RELAY REED DPST 500MA 5V
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Coto Technology
Operating Temperature
-20°C ~ 85°C
Termination Style
PC Pin
Features
EMI Shielded
Coil Current
13.3 mA
Coil Type
Non Latching
Mounting Type
Through Hole
Coil Voltage
5VDC
Seal Rating
-
Contact Form
DPST-NO (2 Form A)
Contact Rating (Current)
500 mA
Switching Voltage
200VAC, 200VDC - Max
Must Release Voltage
0.4 VDC
Must Operate Voltage
3.75 VDC
Operate Time
0.75 ms
Release Time
0.5 ms
Contact Material
-
Coil Resistance
375 Ohms
Documents & Media
Resource Type
Link
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
9092-05-10
948770
306-1183-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 3,154
