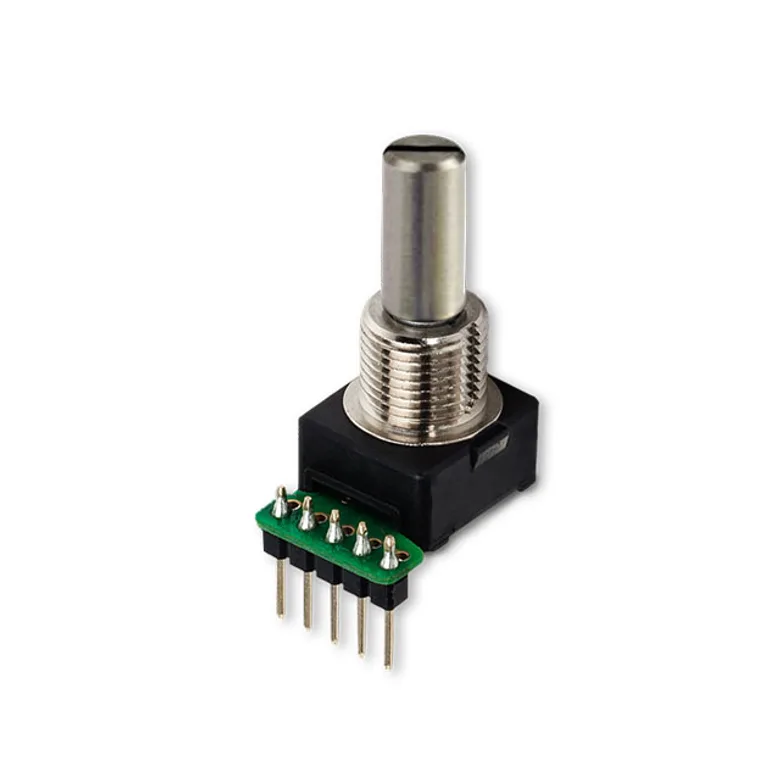

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
CTS Electrocomponents 291P1024SZ00AAB
Manufacturer
Manufacturer Product Number
291P1024SZ00AAB
Description
ENCODER OPTICAL QUAD VERT PC PIN
Manufacturer Standard Lead Time Contact us
Detailed Description
Rotary Encoder Optical 64 Quadrature (Incremental) Vertical
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
CTS Electrocomponents
Product Status
Obsolete
Termination Style
PC Pin
DigiKey Programmable
Not Verified
Voltage - Supply
4.75V ~ 5.25V
Encoder Type
Optical
Detent
No
Pulses per Revolution
64
Output Type
Quadrature (Incremental)
Actuator Type
1/4" Dia Flatted End
Mounting Type
Panel, PCB Through Hole
Built in Switch
No
Rotational Life (Cycles Min)
1M
Orientation
Vertical
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
291P1024SZ00AAB
9084440
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
