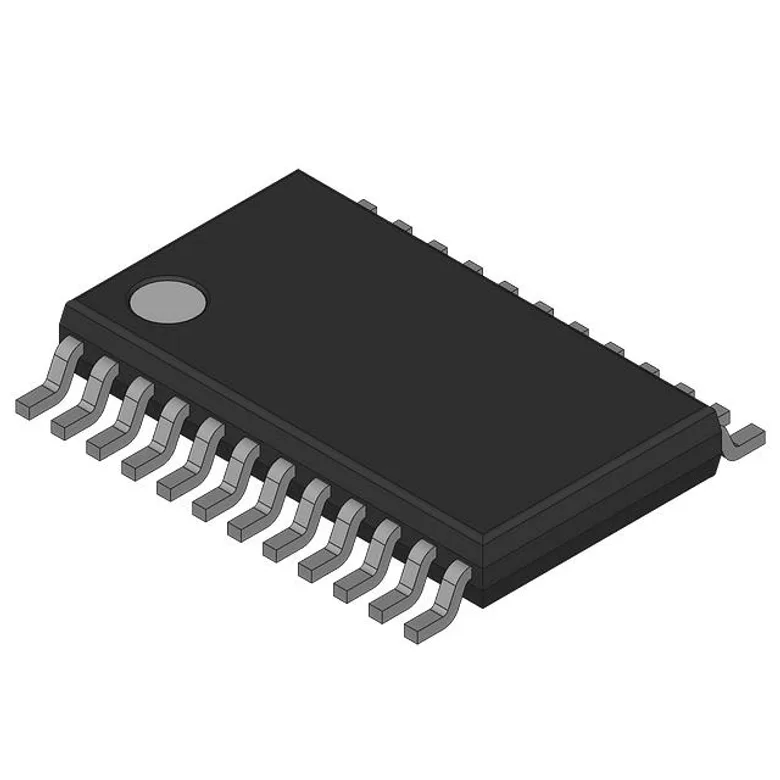

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Cypress Semiconductor Corp CY2509ZC-1
Manufacturer
Manufacturer Product Number
CY2509ZC-1
Description
IC ZD BUFFER 24TSSOP
Manufacturer Standard Lead Time 10 Days
Detailed Description
Clock Zero Delay Buffer IC 2:10 24-TSSOP (0.173", 4.40mm Width)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Cypress Semiconductor Corp
Operating Temperature
0°C ~ 70°C (TA)
Voltage - Supply
2.97V ~ 3.63V
Mounting Type
Surface Mount
Output
LVCMOS, LVTTL
Ratio - Input:Output
2:10
Differential - Input:Output
No/No
Supplier Device Package
24-TSSOP
Package / Case
24-TSSOP (0.173", 4.40mm Width)
Type
Zero Delay Buffer
Input
LVCMOS, LVTTL
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
CY2509ZC-1
12100176
2156-CY2509ZC-1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,039
Packaging Quantity Unit Price Ext Price
1 40.000 ₫ 40.000 ₫
40.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
195
40.000 ₫
7.800.000 ₫
MOQ 195 · Order multiple 195
