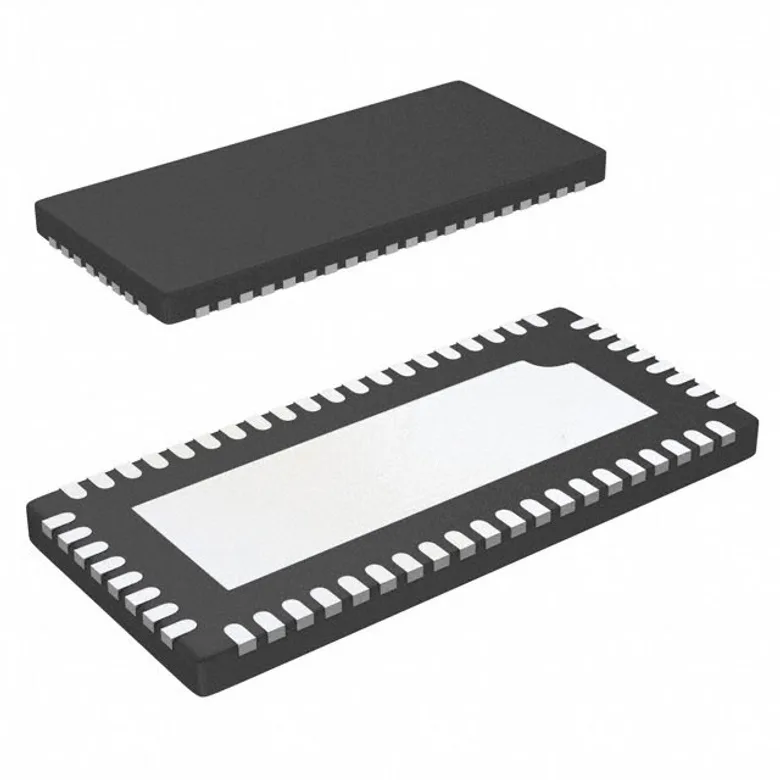

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Diodes Incorporated PI2EQX5964ZFE
Manufacturer
Manufacturer Product Number
PI2EQX5964ZFE
Description
IC REDRIVER PCIE 8CH 56TQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
Buffer, ReDriver 8 Channel 5Gbps 56-TQFN (11x5)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Diodes Incorporated
Product Status
Obsolete
Delay Time
750ps
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
1.15V ~ 1.25V
Applications
PCIe
Current - Supply
800mA
Number of Channels
8
Mounting Type
Surface Mount
Output
CML
Data Rate (Max)
5Gbps
Supplier Device Package
56-TQFN (11x5)
Package / Case
56-WFQFN Exposed Pad
Signal Conditioning
Input Equalization, Output De-Emphasis
Type
Buffer, ReDriver
Input
CML
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PI2EQX5964ZFE
2743241
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
SN65LVPE504RUAR
IC REDRIVER PCIE 4CH 42WQFN
246.000Â â‚« Texas Instruments
DS64BR401SQ/NOPB
IC REDRIVER SAS/SATA 4CH 54WQFN
379.000Â â‚« Texas Instruments
DS100BR410SQE/NOPB
IC REDRIVER SATA 4CH 48WQFN
431.000Â â‚« Texas Instruments
DS64BR401SQE/NOPB
IC REDRIVER SAS/SATA 4CH 54WQFN
596.000Â â‚« Texas Instruments
DS100BR410SQ/NOPB
IC REDRIVER SATA 4CH 48WQFN
401.000Â â‚« Texas Instruments
DS100BR410SQX/NOPB
IC REDRIVER SATA 4CH 48WQFN
328.000Â â‚« Texas Instruments
