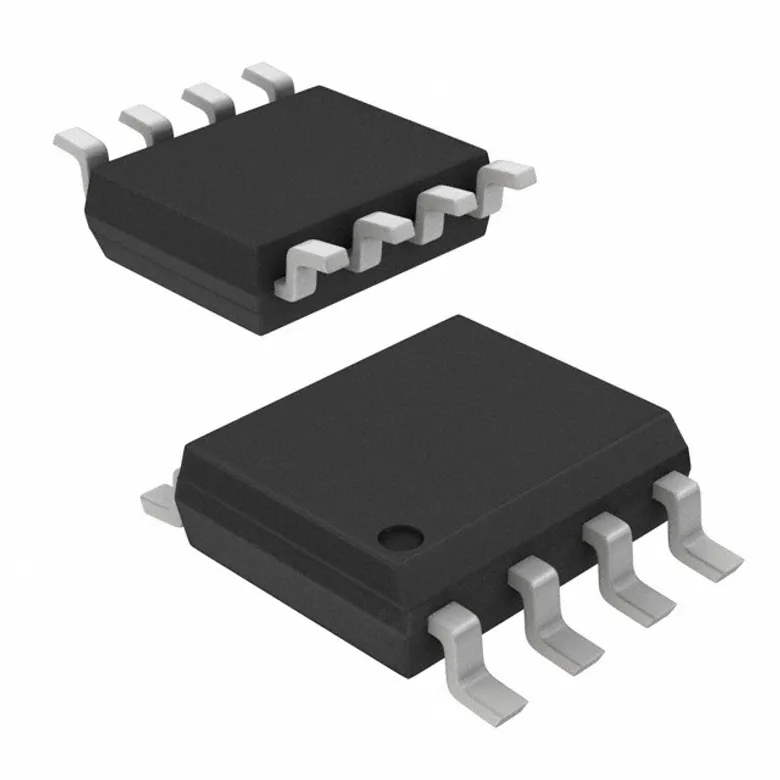

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Diodes Incorporated PT7C4302AWEX
Manufacturer
Manufacturer Product Number
PT7C4302AWEX
Description
IC RTC CLK/CALENDAR SER 8SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
Real Time Clock (RTC) IC Clock/Calendar 31B 3-Wire Serial 8-SOIC (0.154", 3.90mm Width)
Product Attributes
Type
Description
Manufacturer
Diodes Incorporated
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C (TA)
DigiKey Programmable
Not Verified
Voltage - Supply
1.2V ~ 5.5V
Time Format
HH:MM:SS (12/24 hr)
Date Format
YY-MM-DD-dd
Features
Leap Year, NVSRAM, Square Wave Output, Trickle-Charger
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Memory Size
31B
Voltage - Supply, Battery
1.2V ~ 5.5V
Interface
3-Wire Serial
Package / Case
8-SOIC (0.154", 3.90mm Width)
Current - Timekeeping (Max)
25.3µA ~ 81µA @ 2V ~ 5V
Type
Clock/Calendar
Documents & Media
Resource Type
Link
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
PT7C4302AWEX
10295716
PT7C4302AWEXDI-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 14.000 ₫ 14.000 ₫
14.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
14.000 ₫
35.000.000 ₫
5,000
13.000 ₫
65.000.000 ₫
7,500
13.000 ₫
97.500.000 ₫
12,500
12.000 ₫
150.000.000 ₫
17,500
12.000 ₫
210.000.000 ₫
MOQ 2,500 · Order multiple 2,500
