Image shown is representative only. Exact specifications should be obtained from the product datasheet.

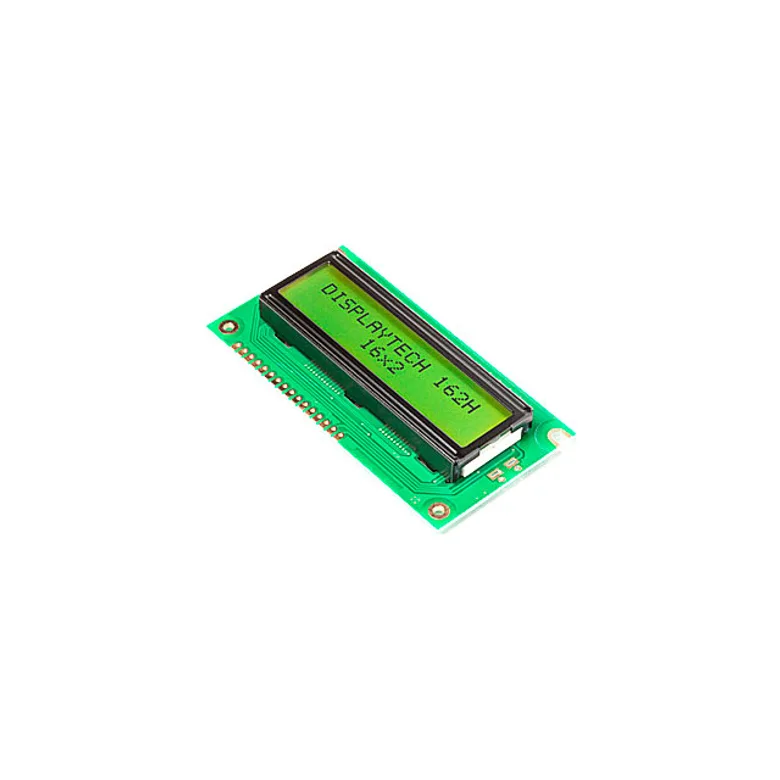

Displaytech 162H BC BW
Manufacturer
Manufacturer Product Number
162H BC BW
Description
CHARACTER MODULE
Manufacturer Standard Lead Time Contact us
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green 84.00mm x 44.00mm x 13.20mm
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Displaytech
Number of Characters
16.0
Operating Temperature
-20°C ~ 70°C
Voltage - Supply
4.5V ~ 5.5V
Viewing Area
66.00mm L x 16.00mm W
Display Type
STN - Super-Twisted Nematic
Character Size
5.55mm H x 2.95mm W
Display Format
16 x 2
Character Format
5 x 8 Dots
Dot Size
0.55mm W x 0.65mm H
Outline L x W x H
84.00mm x 44.00mm x 13.20mm
Interface
-
Text Color
-
Background Color
-
Display Mode
Transflective
Backlight
LED - Yellow/Green
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
162H BC BW
10494893
1756-162HBCBW-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 230
Packaging Quantity Unit Price Ext Price
1 501.000 ₫ 501.000 ₫
501.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
501.000 ₫
501.000 ₫
10
396.000 ₫
3.960.000 ₫
100
335.000 ₫
33.500.000 ₫
500
309.000 ₫
154.500.000 ₫
MOQ 1 · Order multiple 1
