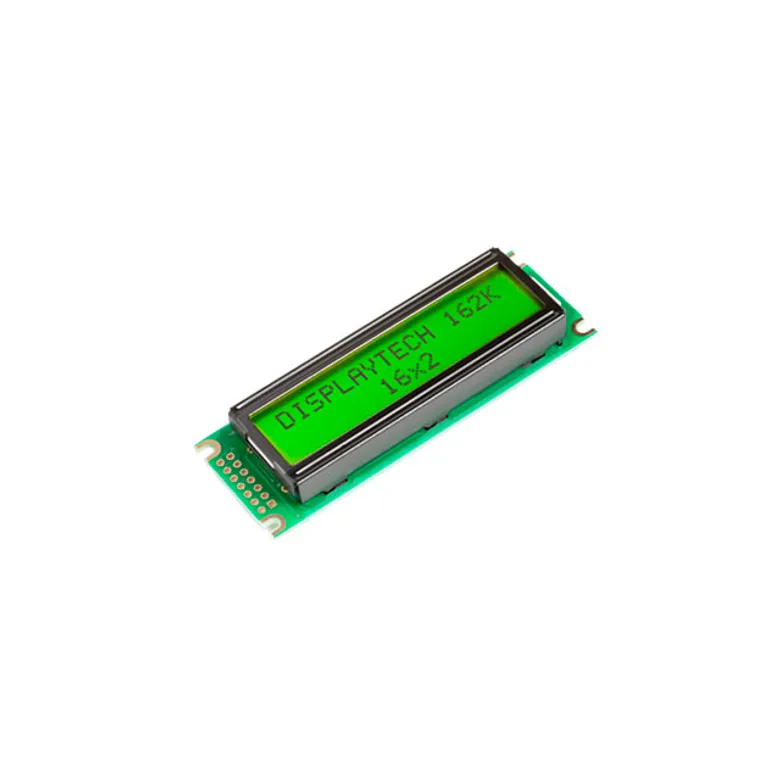

Displaytech 162K BC BW
Manufacturer
Manufacturer Product Number
162K BC BW
Description
CHARACTER MODULE
Manufacturer Standard Lead Time Contact us
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green 85.00mm x 30.00mm x 13.20mm
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Displaytech
Number of Characters
16.0
Operating Temperature
-20°C ~ 70°C
Voltage - Supply
4.5V ~ 5.5V
Viewing Area
66.00mm L x 16.00mm W
Display Type
STN - Super-Twisted Nematic
Character Size
5.55mm H x 2.95mm W
Display Format
16 x 2
Character Format
5 x 8 Dots
Dot Size
0.55mm W x 0.65mm H
Outline L x W x H
85.00mm x 30.00mm x 13.20mm
Interface
-
Text Color
-
Background Color
-
Display Mode
Transflective
Backlight
LED - Yellow/Green
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
162K BC BW
10494901
1756-162KBCBW-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 260.000 ₫ 260.000 ₫
260.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
500
260.000 ₫
130.000.000 ₫
MOQ 500 · Order multiple 500
