Image shown is representative only. Exact specifications should be obtained from the product datasheet.

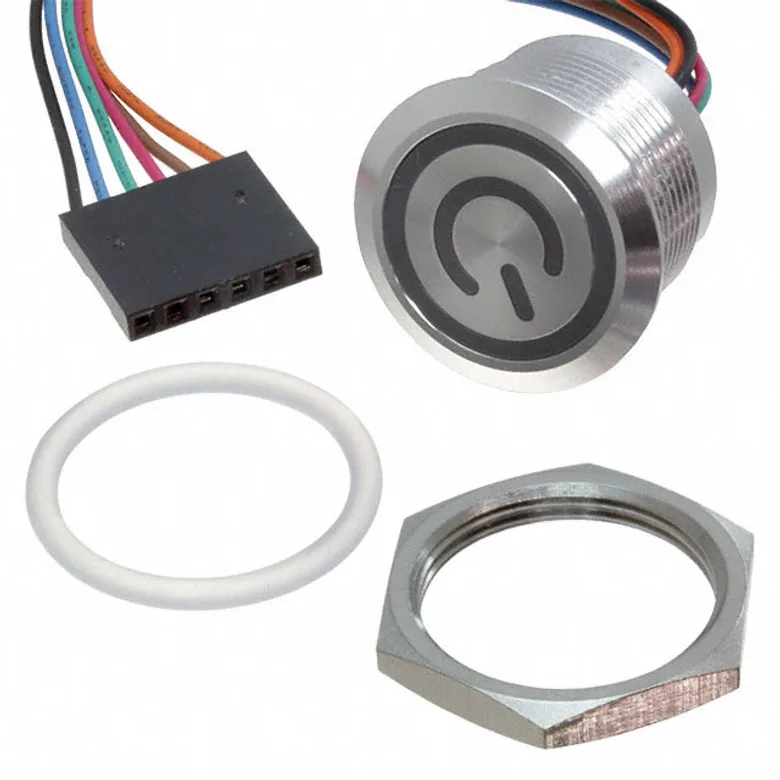

E-Switch CS4M2FP
Manufacturer
Manufacturer Product Number
CS4M2FP
Description
SWITCH PB SPST 1A 24V
Manufacturer Standard Lead Time Contact us
Detailed Description
Pushbutton Switch SPST-NO Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
E-Switch
Switch Function
Off-Mom
Operating Temperature
-20°C ~ 65°C
Termination Style
Wire Leads with Connector
Features
-
Illumination Type, Color
LED, Blue/Green/Red
Illumination Voltage (Nominal)
-
Actuator Type
Round, Button, Flush
Current Rating (Amps)
1A (DC)
Mounting Type
Panel Mount, Front
Ingress Protection
-
Panel Cutout Dimensions
Circular - 19.20mm Dia
Circuit
SPST-NO
Color - Actuator/Cap
Silver
Mechanical Life
-
Electrical Life
50,000,000 Cycles
Actuator Marking
Power Symbol
Type
Capacitive, Anti-Vandal, Illuminated
Voltage Rating - DC
24 V
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
CS4M2FP
9866350
EG6112-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 124
Packaging Quantity Unit Price Ext Price
1 1.489.000 ₫ 1.489.000 ₫
1.489.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
1.489.000 ₫
1.489.000 ₫
20
1.228.000 ₫
24.560.000 ₫
40
1.174.000 ₫
46.960.000 ₫
60
1.144.000 ₫
68.640.000 ₫
100
1.107.000 ₫
110.700.000 ₫
MOQ 1 · Order multiple 1
