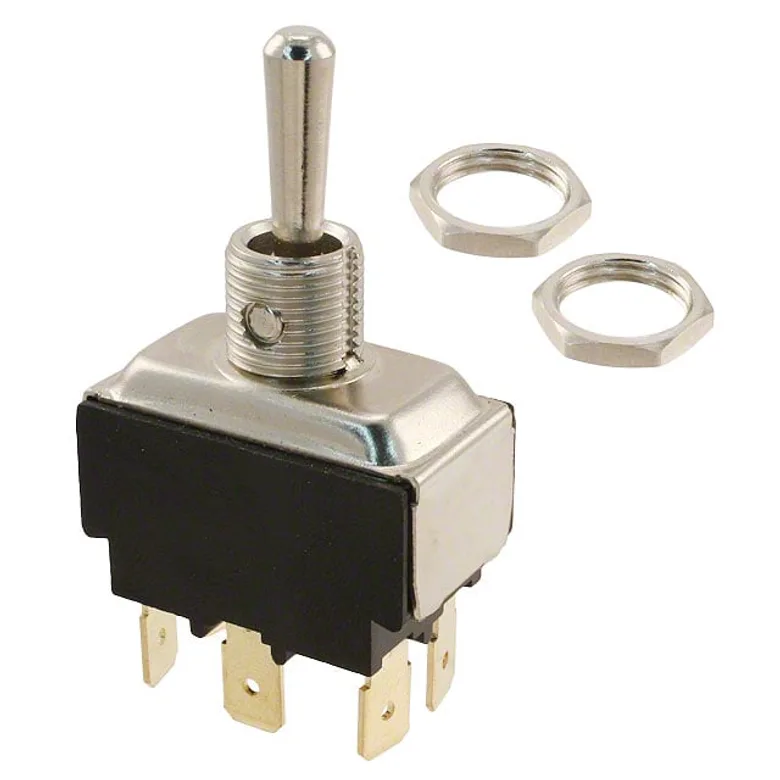

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
E-Switch ST246D00
Manufacturer
Manufacturer Product Number
ST246D00
Description
SWITCH TOGGLE DPDT 20A 125V
Manufacturer Standard Lead Time Contact us
Detailed Description
SWITCH TOGGLE DPDT 20A 125V
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
E-Switch
Switch Function
On-Off-On
Operating Temperature
0°C ~ 85°C
Termination Style
Quick Connect - 0.250" (6.3mm)
Features
-
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Illumination
Non-Illuminated
Bushing Thread
M12 x 1
Actuator Length
17.50mm
Actuator Type
Standard Round
Current Rating (Amps)
20A (AC)
Mounting Type
Panel Mount
Ingress Protection
-
Panel Cutout Dimensions
Circular - 12.00mm Dia
Circuit
DPDT
Electrical Life
6,000 Cycles
Actuator Material
Brass, Nickel Plated
Voltage Rating - AC
125 V
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Drawings
Training Modules
Interactive Media
Videos
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
ST246D00
2116300
EG4821-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,227
Packaging Quantity Unit Price Ext Price
1 228.000 ₫ 228.000 ₫
228.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
228.000 ₫
228.000 ₫
10
197.000 ₫
1.970.000 ₫
25
186.000 ₫
4.650.000 ₫
50
178.000 ₫
8.900.000 ₫
100
170.000 ₫
17.000.000 ₫
250
160.000 ₫
40.000.000 ₫
500
153.000 ₫
76.500.000 ₫
1,000
147.000 ₫
147.000.000 ₫
MOQ 1 · Order multiple 1
