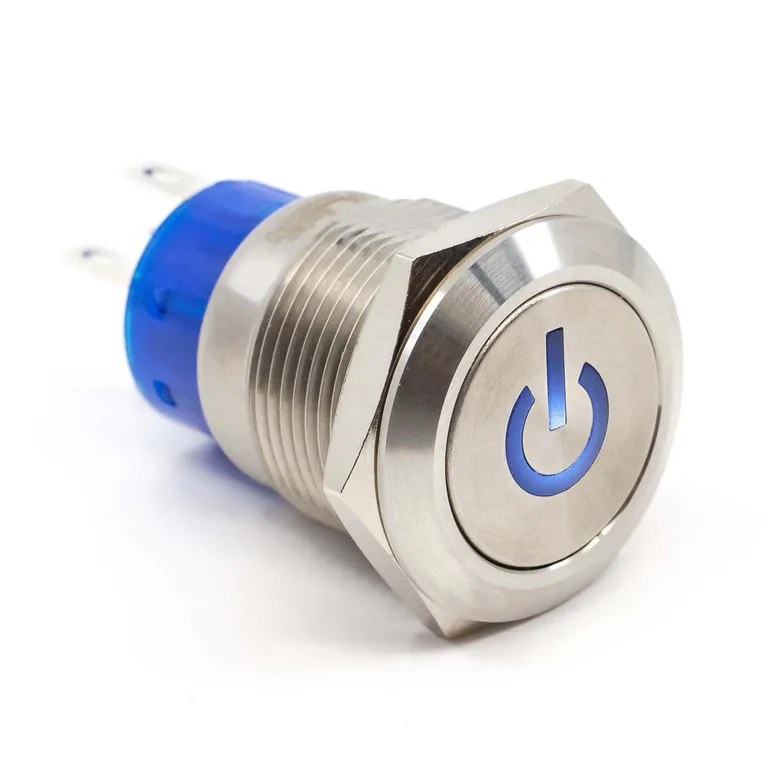

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
E-Switch ULV4F23SS546
Manufacturer
Manufacturer Product Number
ULV4F23SS546
Description
SWITCH PUSHBUTTON SPDT 3A 250V
Manufacturer Standard Lead Time Contact us
Detailed Description
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
E-Switch
Switch Function
On-On
Operating Temperature
-20°C ~ 55°C
Termination Style
Solder, Quick Connect - 0.110" (2.8mm)
Features
-
Illumination Type, Color
LED, Blue
Illumination Voltage (Nominal)
110 VAC
Actuator Type
Round, Button, Flush
Current Rating (Amps)
3A (AC)
Mounting Type
Panel Mount, Front
Ingress Protection
IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions
Circular - 19.20mm Dia
Circuit
SPDT
Color - Actuator/Cap
Silver
Mechanical Life
500,000 Cycles
Electrical Life
50,000 Cycles
Actuator Marking
Power Symbol
Type
Anti-Vandal, Illuminated
Voltage Rating - AC
250 V
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Drawings
Training Modules
Videos
Environmental Information
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ULV4F23SS546
5968576
ULV4F23SS546-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 373.000 ₫ 373.000 ₫
373.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
105
373.000 ₫
39.165.000 ₫
MOQ 105 · Order multiple 105
