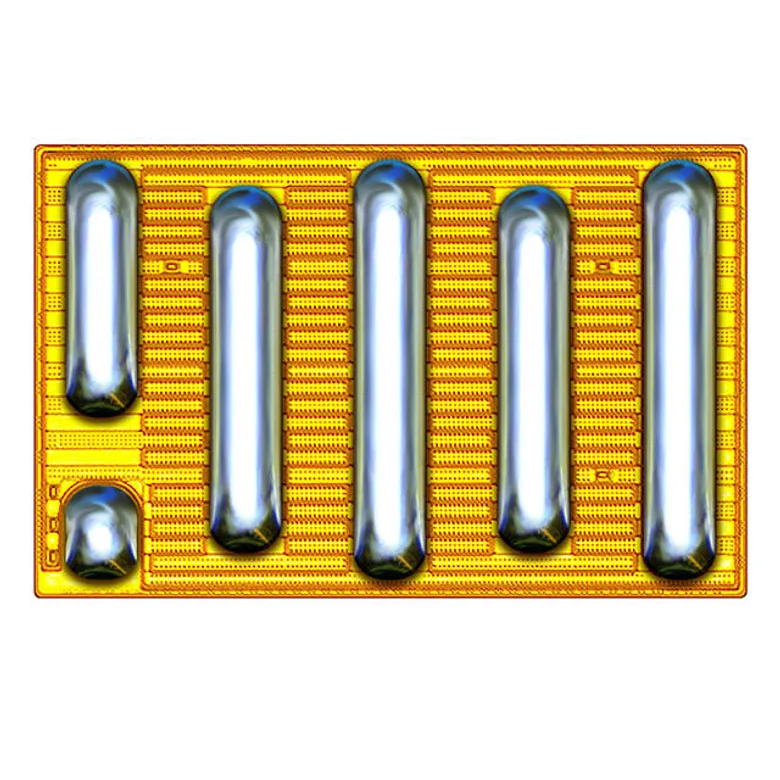

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
EPC EPC2204A
Manufacturer
Manufacturer Product Number
EPC2204A
Description
TRANS GAN 80V .006OHM AECQ101
Manufacturer Standard Lead Time Contact us
Detailed Description
TRANS GAN 80V .006OHM AECQ101
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
EPC
Gate Charge (Qg) (Max) @ Vgs
7.4 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds
851 pF @ 50 V
Operating Temperature
-40°C ~ 150°C (TJ)
Power Dissipation (Max)
-
Qualification
AEC-Q101
Technology
GaNFET (Gallium Nitride)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
29A (Ta)
Rds On (Max) @ Id, Vgs
6mOhm @ 16A, 5V
Vgs(th) (Max) @ Id
2.5V @ 4mA
Mounting Type
Surface Mount
FET Feature
-
Supplier Device Package
Die
Package / Case
Die
Grade
Automotive
Drive Voltage (Max Rds On, Min Rds On)
5V
Vgs (Max)
+6V, -4V
Drain to Source Voltage (Vdss)
80 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
EPC2204A
16673018
917-EPC2204ACT-ND
917-EPC2204ADKR-ND
917-EPC2204ATR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 30,286
Packaging Quantity Unit Price Ext Price
1 103.000 ₫ 103.000 ₫
103.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
103.000 ₫
103.000 ₫
10
68.000 ₫
680.000 ₫
100
47.000 ₫
4.700.000 ₫
500
39.000 ₫
19.500.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
103.000 ₫
103.000 ₫
10
68.000 ₫
680.000 ₫
100
47.000 ₫
4.700.000 ₫
500
39.000 ₫
19.500.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
33.000 ₫
82.500.000 ₫
5,000
32.000 ₫
160.000.000 ₫
MOQ 2,500 · Order multiple 2,500
