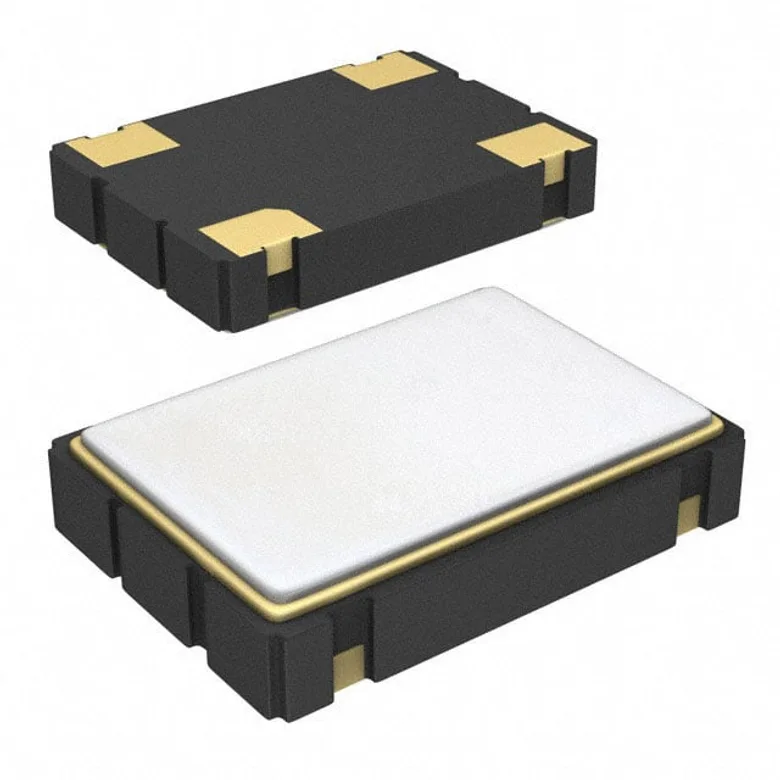

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
EPSON SG-9101CA-D30PHABB
Manufacturer
Manufacturer Product Number
SG-9101CA-D30PHABB
Description
XTAL OSC PROG XO CMOS DWN SPRD
Manufacturer Standard Lead Time Contact us
Detailed Description
XTAL OSC PROG XO CMOS DWN SPRD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
EPSON
Current - Supply (Max)
-
Base Resonator
Crystal
Operating Temperature
-40°C ~ 105°C
Frequency Stability
-
Voltage - Supply
1.62V ~ 3.63V
Size / Dimension
0.276" L x 0.197" W (7.00mm x 5.00mm)
Mounting Type
Surface Mount
Ratings
-
Output
CMOS
Supplier Device Package
4-SMD (7x5)
Programmable Type
Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Height - Seated (Max)
0.055" (1.40mm)
Package / Case
4-SMD, No Lead
Type
XO (Standard)
Frequency Stability (Total)
-
Function
Enable/Disable
Notification
Programmed by Digi-Key (Enter your frequency in Web Order Notes) Blank Oscillator stock may be available to program in 1-2 business days.
Available Frequency Range
670 kHz ~ 170 MHz
Current - Supply (Disable) (Max)
3.7 mA
Spread Spectrum Bandwidth
-3.00%, Down Spread
Documents & Media
Resource Type
Link
Datasheets
Training Modules
Environmental Information
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
SG-9101CA-D30PHABB
7783805
SG-9101CA-D30PHABB-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 213.000 ₫ 213.000 ₫
213.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
213.000 ₫
213.000 ₫
10
185.000 ₫
1.850.000 ₫
25
175.000 ₫
4.375.000 ₫
50
168.000 ₫
8.400.000 ₫
100
161.000 ₫
16.100.000 ₫
250
152.000 ₫
38.000.000 ₫
500
146.000 ₫
73.000.000 ₫
1,000
140.000 ₫
140.000.000 ₫
MOQ 1 · Order multiple 1
