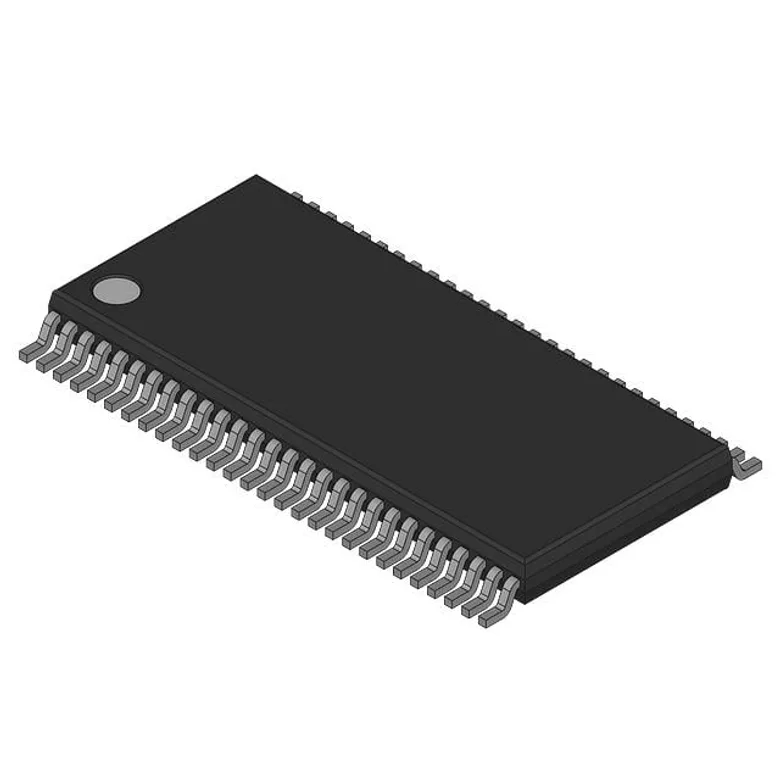

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Fairchild Semiconductor 74LVTH16501MTDX
Manufacturer
Manufacturer Product Number
74LVTH16501MTDX
Description
IC UNIV BUS TXRX 56-TSSOP
Manufacturer Standard Lead Time 10 Days
Detailed Description
Universal Bus Transceiver 18-Bit 56-TSSOP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Fairchild Semiconductor
Product Status
Obsolete
Logic Type
Universal Bus Transceiver
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
2.7V ~ 3.6V
Current - Output High, Low
32mA, 64mA
Number of Circuits
18-Bit
Mounting Type
Surface Mount
Supplier Device Package
56-TSSOP
Package / Case
56-TFSOP (0.240", 6.10mm Width)
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
74LVTH16501MTDX
11553063
2156-74LVTH16501MTDX-FSTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 15,544
Packaging Quantity Unit Price Ext Price
1 50.000 ₫ 50.000 ₫
50.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
158
50.000 ₫
7.900.000 ₫
MOQ 158 · Order multiple 158
