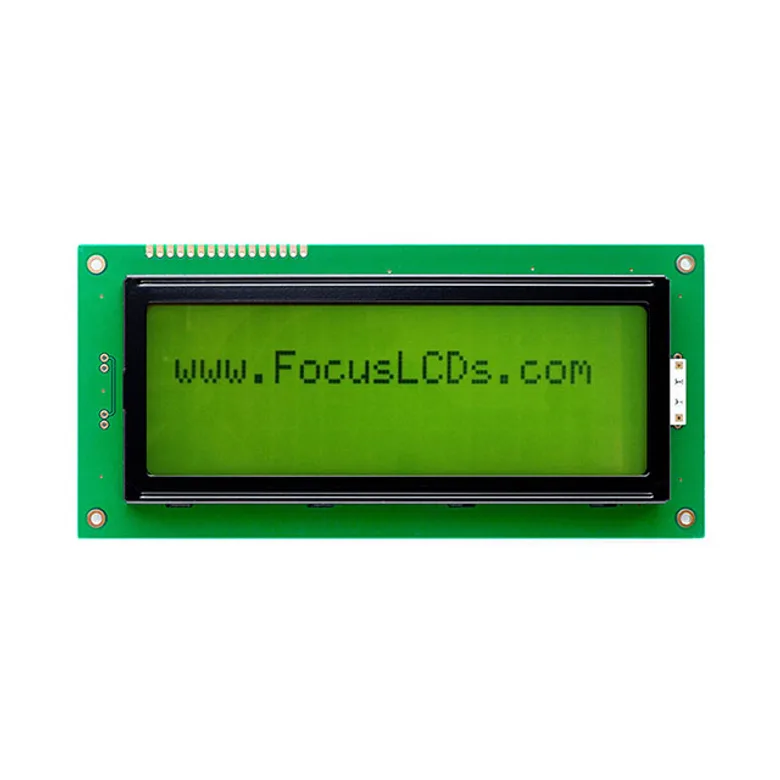

Focus LCDs C204ALBSYLY6WT33XAA
Manufacturer
Manufacturer Product Number
C204ALBSYLY6WT33XAA
Description
20X4 STN YELLOW/GREEN CHARACTER
Manufacturer Standard Lead Time 1 Days
Detailed Description
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow Parallel 155.50mm x 73.00mm x 14.00mm
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Focus LCDs
Number of Characters
80.0
Operating Temperature
-20°C ~ 70°C
Voltage - Supply
3.3V
Viewing Area
123.00mm L x 42.50mm W
Display Type
STN - Super-Twisted Nematic
Character Size
9.22mm H x 4.84mm W
Display Format
20 x 4
Character Format
5 x 8 Dots
Dot Size
0.92mm W x 1.10mm H
Controller Type
ST7066U
Outline L x W x H
155.50mm x 73.00mm x 14.00mm
Interface
Parallel
Text Color
Black
Background Color
Yellow/Green
Display Mode
Transflective
Backlight
LED - Yellow
