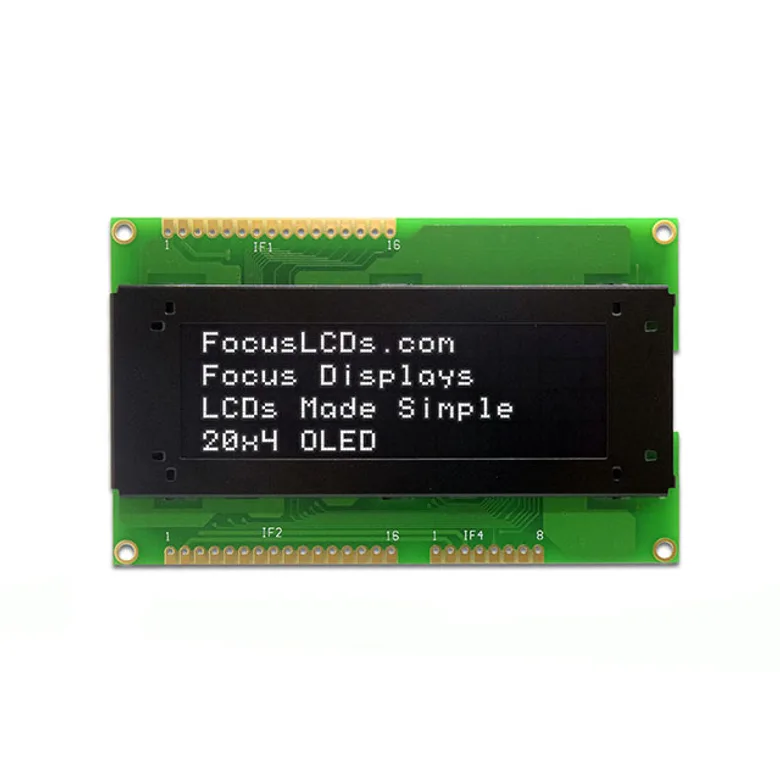

Focus LCDs O204A-CW-SW3
Manufacturer
Manufacturer Product Number
O204A-CW-SW3
Description
OLED MODULE 80DIG 20 X 4 PASSIVE
Manufacturer Standard Lead Time 1 Days
Detailed Description
OLED MODULE 80DIG 20 X 4 PASSIVE
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Focus LCDs
Number of Characters
80.0
Operating Temperature
-40°C ~ 70°C
Voltage - Supply
2.4V ~ 3.6V
Viewing Area
72.42mm L x 22.82mm W
Display Type
OLED
Character Size
4.77mm H x 2.95mm W
Display Format
20 x 4
Character Format
5 x 8 Dots
Dot Size
0.58mm W x 0.60mm H
Controller Type
KS0066
Outline L x W x H
98.00mm x 60.00mm x 9.70mm
Interface
Parallel, 8-Bit
Text Color
White
Background Color
Black
Display Mode
Passive
Backlight
LED - White
Documents & Media
Resource Type
Link
Datasheets
Application Notes
Additional Resources
Attribute
Description
Part Number Alias
O204A-CW-SW3
12691199
2632-O204A-CW-SW3-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 20
Packaging Quantity Unit Price Ext Price
1 1.727.000 ₫ 1.727.000 ₫
1.727.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
1.727.000 ₫
1.727.000 ₫
10
1.648.000 ₫
16.480.000 ₫
25
1.545.000 ₫
38.625.000 ₫
50
1.436.000 ₫
71.800.000 ₫
100
1.333.000 ₫
133.300.000 ₫
MOQ 1 · Order multiple 1
