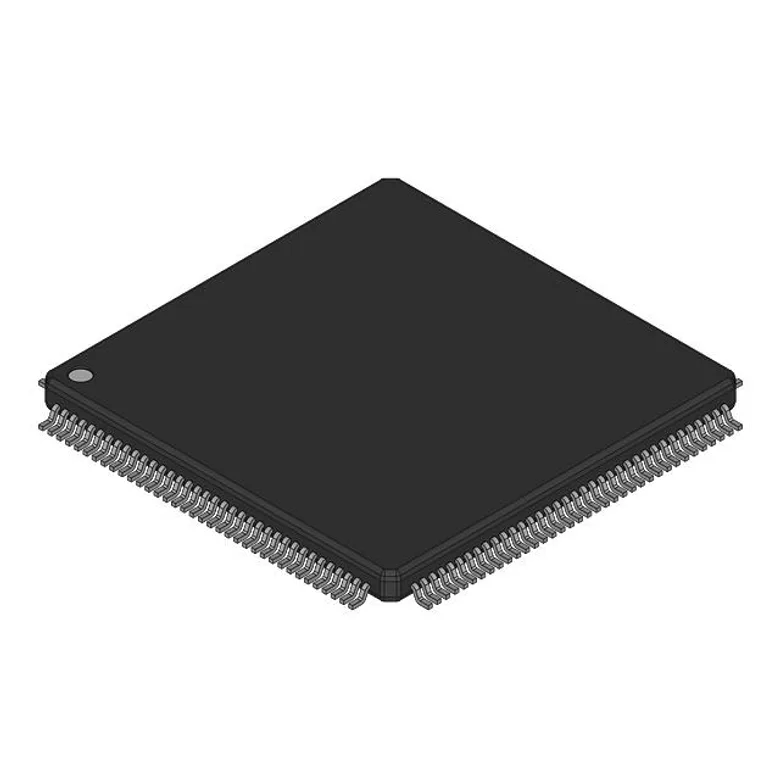

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Freescale Semiconductor MC68302AG25C
Manufacturer
Manufacturer Product Number
MC68302AG25C
Description
IC MPU M683XX 25MHZ 144LQFP
Manufacturer Standard Lead Time 10 Days
Detailed Description
M68000 Microprocessor IC M683xx 1 Core, 8/16-Bit 25MHz 144-LQFP (20x20)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Freescale Semiconductor
Operating Temperature
0°C ~ 70°C (TA)
Core Processor
M68000
Mounting Type
Surface Mount
Voltage - I/O
5.0V
Supplier Device Package
144-LQFP (20x20)
Speed
25MHz
Ethernet
-
USB
-
Package / Case
144-LQFP
Number of Cores/Bus Width
1 Core, 8/16-Bit
Co-Processors/DSP
Communications; RISC CPM
RAM Controllers
DRAM
Graphics Acceleration
No
Display & Interface Controllers
-
Security Features
-
SATA
-
Additional Interfaces
GCI, IDL, ISDN, NMSI, PCM, SCPI
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
MC68302AG25C
12600554
2156-MC68302AG25C-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 125
Packaging Quantity Unit Price Ext Price
1 2.030.000 ₫ 2.030.000 ₫
2.030.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
4
2.030.000 ₫
8.120.000 ₫
MOQ 4 · Order multiple 4
