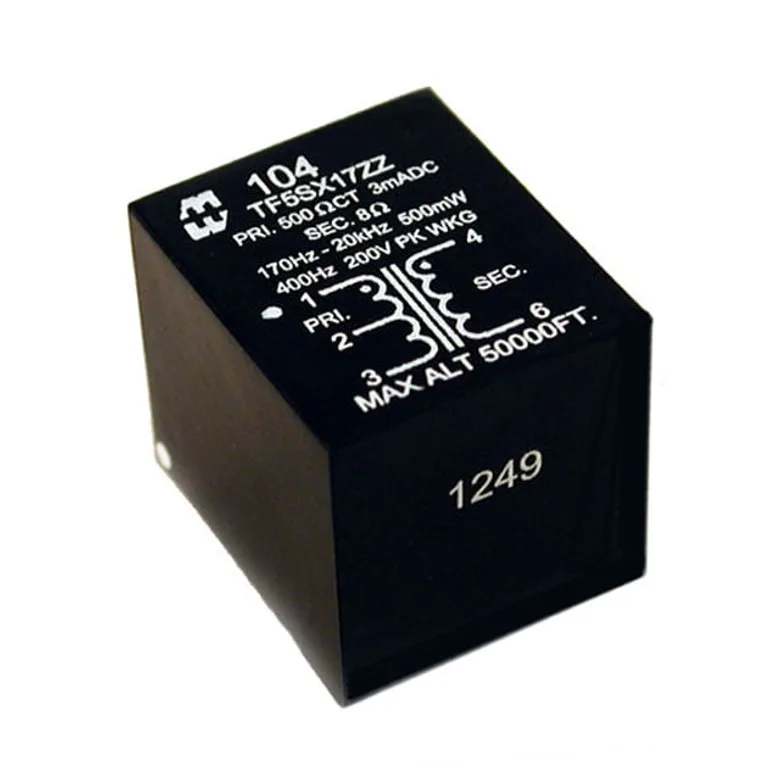

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Hammond Manufacturing 104B
Manufacturer
Manufacturer Product Number
104B
Description
AUDIO XFMR 150 / 80K TH
Manufacturer Standard Lead Time Contact us
Detailed Description
150 Impedance Primary Ohms 80k Impedance Secondary Ohms Audio Transformer 60Hz Through Hole
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Hammond Manufacturing
Return Loss
-
Operating Temperature
-
Termination Style
PC Pin
Transformer Type
Miniature Epoxy Potted
Turns Ratio - Primary:Secondary
-
Insertion Loss
1dB
Frequency Range
60Hz
Size / Dimension
0.860" L x 0.710" W (21.84mm x 18.03mm)
Voltage - Isolation
200V
Approval Agency
-
Mounting Type
Through Hole
Height - Seated (Max)
0.750" (19.05mm)
Impedance - Primary (Ohms)
150
Impedance - Secondary (Ohms)
80k
DC Resistance (DCR) - Primary
6.6Ohm
DC Resistance (DCR) - Secondary
3.73kOhm
Frequency Response
-1dB
Power Level
5mW
Weight
0.05 lb (22.68 g)
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
104B
455674
HM2351-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1
Packaging Quantity Unit Price Ext Price
1 959.000Â â‚« 959.000Â â‚«
959.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
959.000Â â‚«
959.000Â â‚«
10
854.000Â â‚«
8.540.000Â â‚«
25
816.000Â â‚«
20.400.000Â â‚«
50
788.000Â â‚«
39.400.000Â â‚«
100
761.000Â â‚«
76.100.000Â â‚«
250
727.000Â â‚«
181.750.000Â â‚«
MOQ 1 · Order multiple 1
