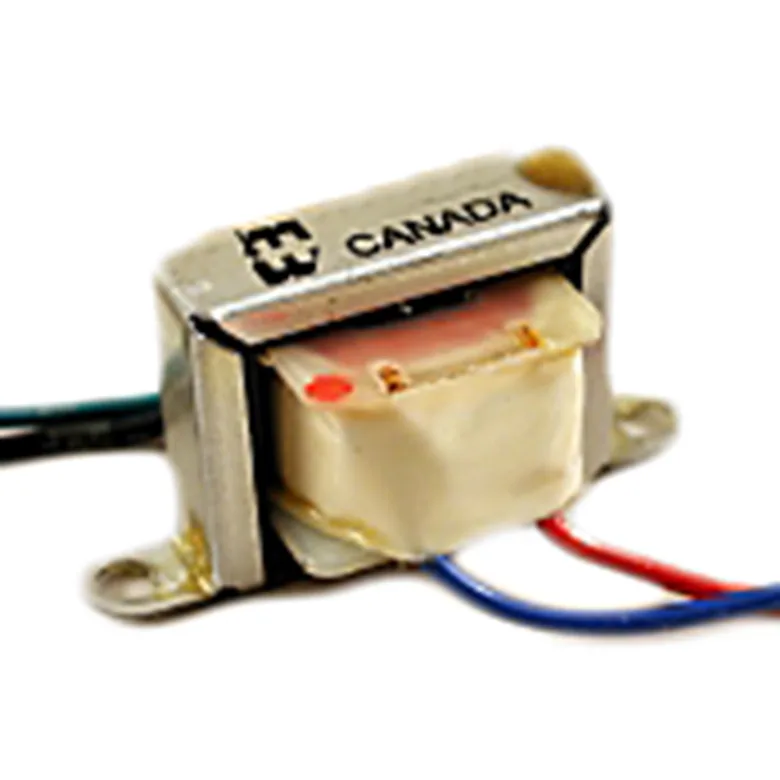

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Hammond Manufacturing 144P
Manufacturer
Manufacturer Product Number
144P
Description
AUDIO XFMR 10K / 3.2 CHAS MNT
Manufacturer Standard Lead Time Contact us
Detailed Description
10k Impedance Primary Ohms 3.2 Impedance Secondary Ohms Audio Transformer 150Hz ~ 15kHz Chassis Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Hammond Manufacturing
Return Loss
-
Operating Temperature
-
Termination Style
Wire Leads
Transformer Type
Economical Open Type
Turns Ratio - Primary:Secondary
-
Insertion Loss
-
Frequency Range
150Hz ~ 15kHz
Size / Dimension
1.000" L x 0.690" W (25.40mm x 17.53mm)
Voltage - Isolation
-
Approval Agency
-
Mounting Type
Chassis Mount
Height - Seated (Max)
0.690" (17.53mm)
Impedance - Primary (Ohms)
10k
Impedance - Secondary (Ohms)
3.2
DC Resistance (DCR) - Primary
575Ohm
DC Resistance (DCR) - Secondary
500mOhm
Frequency Response
±1dB
Power Level
50mW
Weight
0.031 lb (14.06 g)
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
144P
454939
HM2803-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 5
Packaging Quantity Unit Price Ext Price
1 771.000Â â‚« 771.000Â â‚«
771.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
771.000Â â‚«
771.000Â â‚«
10
687.000Â â‚«
6.870.000Â â‚«
25
656.000Â â‚«
16.400.000Â â‚«
50
633.000Â â‚«
31.650.000Â â‚«
100
612.000Â â‚«
61.200.000Â â‚«
250
584.000Â â‚«
146.000.000Â â‚«
MOQ 1 · Order multiple 1
