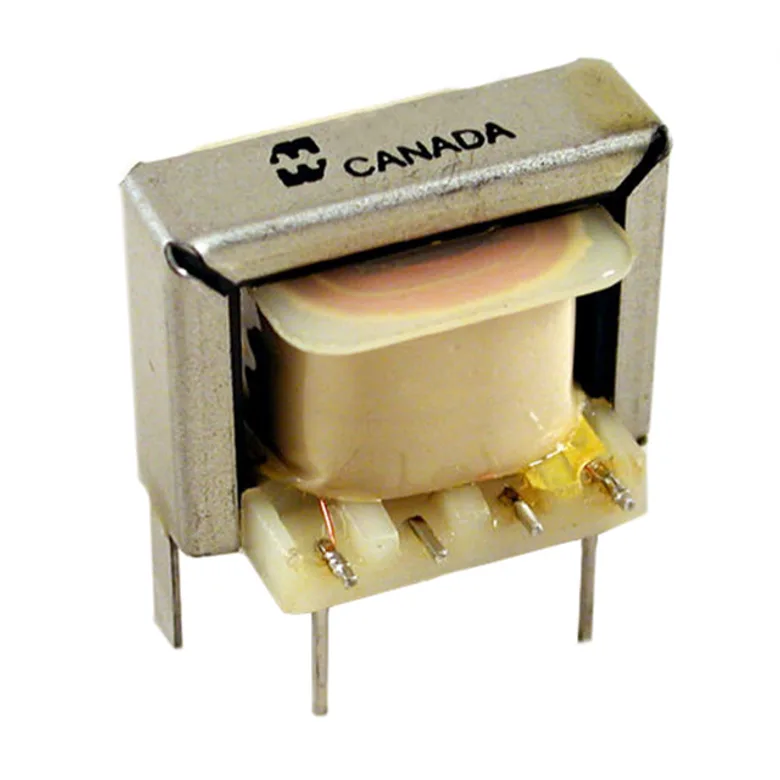

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Hammond Manufacturing 149U
Manufacturer
Manufacturer Product Number
149U
Description
AUDIO XFMR 600 150/150 / 8 TH
Manufacturer Standard Lead Time Contact us
Detailed Description
600, 150/150 Impedance Primary Ohms 8 Impedance Secondary Ohms Audio Transformer 200Hz ~ 15kHz Through Hole
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Hammond Manufacturing
Return Loss
-
Operating Temperature
-
Termination Style
PC Pin
Transformer Type
Economical Open Type
Turns Ratio - Primary:Secondary
-
Insertion Loss
0.5dB
Frequency Range
200Hz ~ 15kHz
Size / Dimension
1.060" L x 0.820" W (26.92mm x 20.83mm)
Voltage - Isolation
-
Approval Agency
-
Mounting Type
Through Hole
Height - Seated (Max)
0.820" (20.83mm)
Impedance - Primary (Ohms)
600, 150/150
Impedance - Secondary (Ohms)
8
DC Resistance (DCR) - Primary
53Ohm
DC Resistance (DCR) - Secondary
95Ohm
Frequency Response
±1dB
Power Level
1000mW
Weight
0.063 lb (28.58 g)
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
149U
454990
HM1777-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 346
Packaging Quantity Unit Price Ext Price
1 783.000Â â‚« 783.000Â â‚«
783.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
783.000Â â‚«
783.000Â â‚«
10
698.000Â â‚«
6.980.000Â â‚«
25
666.000Â â‚«
16.650.000Â â‚«
50
643.000Â â‚«
32.150.000Â â‚«
100
621.000Â â‚«
62.100.000Â â‚«
250
593.000Â â‚«
148.250.000Â â‚«
MOQ 1 · Order multiple 1
