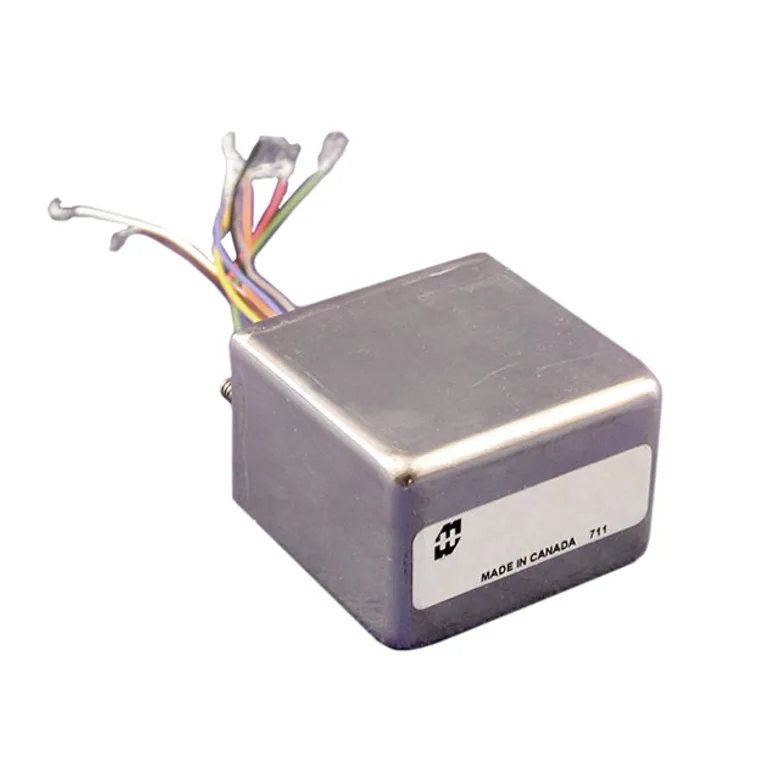

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Hammond Manufacturing 850LA
Manufacturer
Manufacturer Product Number
850LA
Description
XFMR 20K 5K/5K / 600 150/150
Manufacturer Standard Lead Time Contact us
Detailed Description
XFMR 20K 5K/5K / 600 150/150
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Hammond Manufacturing
Return Loss
-
Operating Temperature
-
Termination Style
Wire Leads
Turns Ratio - Primary:Secondary
-
Insertion Loss
1dB
Frequency Range
20Hz ~ 20kHz
Size / Dimension
1.700" L x 1.200" W (43.18mm x 30.48mm)
Voltage - Isolation
-
Approval Agency
-
Mounting Type
Chassis Mount
Height - Seated (Max)
1.650" (41.90mm)
Impedance - Primary (Ohms)
20k, 5k/5k
Impedance - Secondary (Ohms)
600, 150/150
DC Resistance (DCR) - Primary
2.24kOhm
DC Resistance (DCR) - Secondary
69Ohm
Frequency Response
±0.5dB
Power Level
15dB
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
850LA
3869753
HM5194-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 4.063.000Â â‚« 4.063.000Â â‚«
4.063.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
4.063.000Â â‚«
4.063.000Â â‚«
MOQ 1 · Order multiple 1
