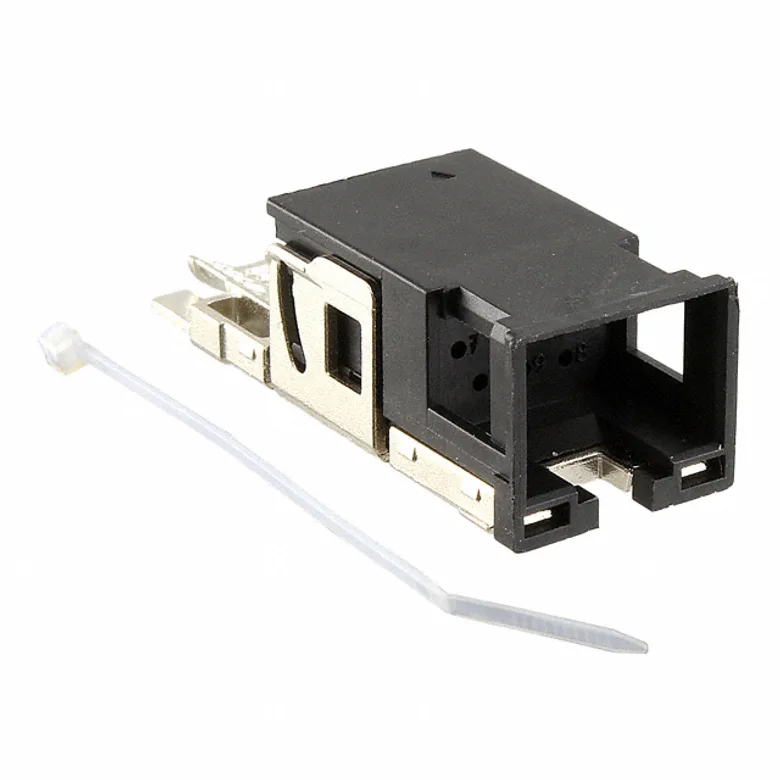

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
HARTING 09455459010
Manufacturer
Manufacturer Product Number
09455459010
Description
CONN INSERT MALE HSG 10POS
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN INSERT MALE HSG 10POS
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
HARTING
Operating Temperature
-40°C ~ 70°C
Connector Type
Insert, Male Pins
Contact Termination
Crimp
Color
-
Features
Shielded
Contact Type
Male Pin
Fastening Type
Push-Pull
Row Spacing
-
Mounting Type
Free Hanging (In-Line)
Number of Positions
10
Pitch
-
Note
Contacts Sold Separately
Insulation Material
Plastic
Number of Rows
3
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
09455459010
3974525
1195-3580-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 23
Packaging Quantity Unit Price Ext Price
1 673.000 ₫ 673.000 ₫
673.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
673.000 ₫
673.000 ₫
10
572.000 ₫
5.720.000 ₫
25
537.000 ₫
13.425.000 ₫
50
511.000 ₫
25.550.000 ₫
100
487.000 ₫
48.700.000 ₫
250
456.000 ₫
114.000.000 ₫
500
435.000 ₫
217.500.000 ₫
MOQ 1 · Order multiple 1
For Use With
09670008576
CONN PIN 20-24AWG GOLD CRIMP
24.000 ₫ HARTING
09670008476
CONN SOCKET 20-24AWG GOLD CRIMP
42.000 ₫ HARTING
09670008178
CONN PIN 20-24AWG GOLD CRIMP
7.000 ₫ HARTING
09455450032
CONN HOUSING FOR PUSHPULL RCPTS
156.000 ₫ HARTING
