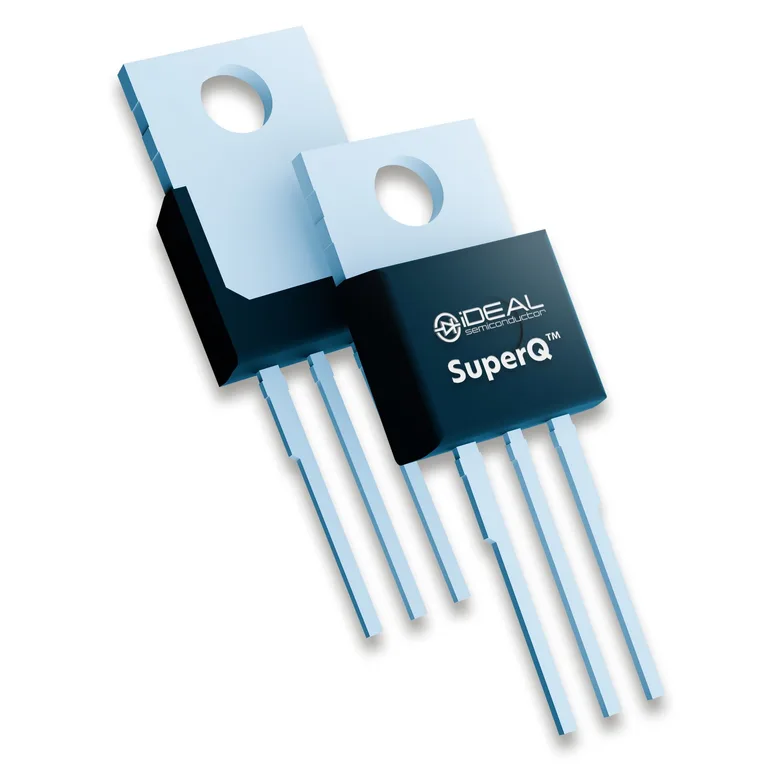

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
iDEAL Semiconductor IS20M028S1P
Manufacturer
Manufacturer Product Number
IS20M028S1P
Description
MOSFET N-CH 200V 41A TO-220
Manufacturer Standard Lead Time Contact us
Detailed Description
MOSFET N-CH 200V 41A TO-220
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
iDEAL Semiconductor
Gate Charge (Qg) (Max) @ Vgs
34 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
2425 pF @ 100 V
Operating Temperature
-55°C ~ 175°C
Power Dissipation (Max)
100W (Tc)
Technology
MOSFET (Metal Oxide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
40A (Tc)
Rds On (Max) @ Id, Vgs
25mOhm @ 13A, 10V
Vgs(th) (Max) @ Id
4.1V @ 70µA
Mounting Type
Through Hole
Supplier Device Package
TO-220
Package / Case
TO-220-3
Drive Voltage (Max Rds On, Min Rds On)
10V
Vgs (Max)
±20V
Drain to Source Voltage (Vdss)
200 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
IS20M028S1P
29180368
6500-IS20M028S1P-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 991
Packaging Quantity Unit Price Ext Price
1 109.000 ₫ 109.000 ₫
109.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
109.000 ₫
109.000 ₫
20
64.000 ₫
1.280.000 ₫
100
51.000 ₫
5.100.000 ₫
500
42.000 ₫
21.000.000 ₫
1,000
39.000 ₫
39.000.000 ₫
2,000
38.000 ₫
76.000.000 ₫
MOQ 1 · Order multiple 1
