Image shown is representative only. Exact specifications should be obtained from the product datasheet.

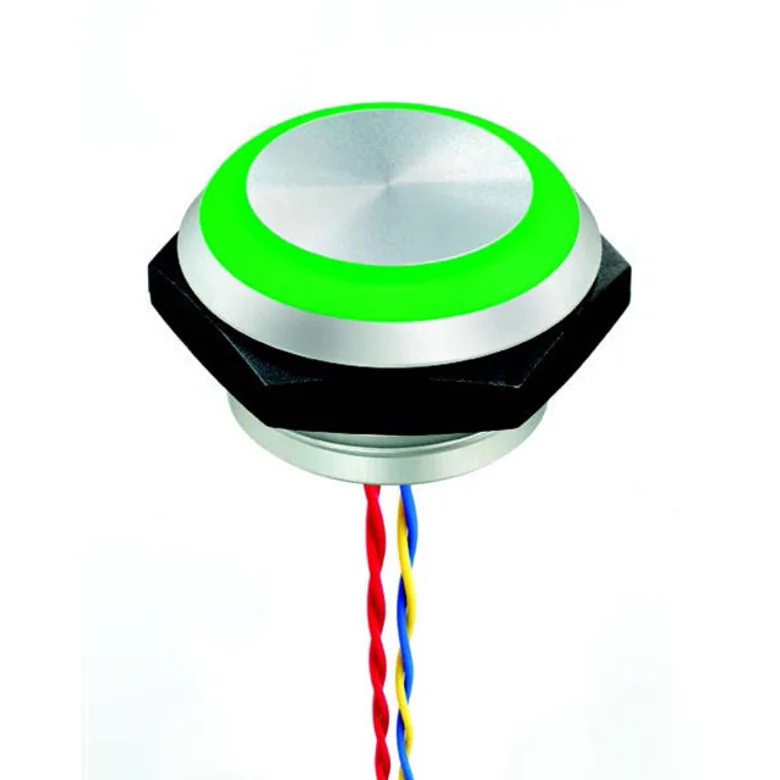

IDEC PN1L-M4AFB002E0Y
Manufacturer
Manufacturer Product Number
PN1L-M4AFB002E0Y
Description
30MM PIEZO RING 24VDC YELLOW
Manufacturer Standard Lead Time Contact us
Detailed Description
30MM PIEZO RING 24VDC YELLOW
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
IDEC
Switch Function
Off-Mom
Operating Temperature
-40°C ~ 75°C
Termination Style
Wire Leads
Features
-
Illumination Type, Color
LED, Yellow
Illumination Voltage (Nominal)
24 VDC
Actuator Type
Round, Button, Flush
Current Rating (Amps)
1A (AC/DC)
Mounting Type
Panel Mount, Front
Ingress Protection
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Panel Cutout Dimensions
Circular - 30.50mm Dia
Circuit
SPST-NO
Color - Actuator/Cap
Silver
Mechanical Life
-
Electrical Life
50,000,000 Cycles
Actuator Marking
No Marking
Type
Piezo
Voltage Rating - AC
24 V
Voltage Rating - DC
24 V
Documents & Media
Resource Type
Link
Datasheets
CAD Models
Interactive Media
Environmental Information
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
PN1L-M4AFB002E0Y
9861707
1885-1973-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4
Packaging Quantity Unit Price Ext Price
1 2.348.000 ₫ 2.348.000 ₫
2.348.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
2.348.000 ₫
2.348.000 ₫
10
2.025.000 ₫
20.250.000 ₫
25
1.909.000 ₫
47.725.000 ₫
50
1.825.000 ₫
91.250.000 ₫
100
1.745.000 ₫
174.500.000 ₫
MOQ 1 · Order multiple 1
Substitutes
PN1L-M2AFB002E0Y
30MM PIEZO RING 24VDC YELLOW
2.520.000 ₫ IDEC
