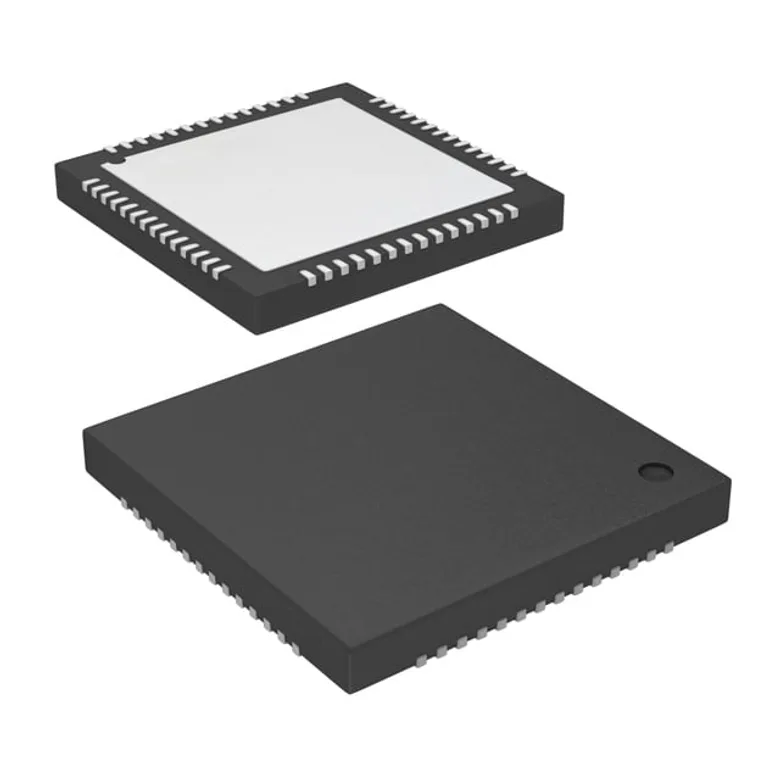

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Infineon Technologies CY8CLED04G01-56LTXI
Manufacturer
Manufacturer Product Number
CY8CLED04G01-56LTXI
Description
IC MCU 8BIT 16KB FLASH 56VQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
M8C PowerPSOCâ„¢ CY8CLED Intelligent LED Driver Microcontroller IC FLASH (16KB) 56-VFQFN Exposed Pad
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Infineon Technologies
Product Status
Obsolete
Number of I/O
14
Operating Temperature
-40°C ~ 85°C
DigiKey Programmable
Not Verified
Voltage - Supply
4.75V ~ 5.25V
Controller Series
CY8CLED
Program Memory Type
FLASH (16KB)
Applications
Intelligent LED Driver
Core Processor
M8C
Mounting Type
Surface Mount
Supplier Device Package
56-QFN (8x8)
Interface
DALI, DMX512, I2C, IrDA, SPI, UART/USART
RAM Size
1K x 8
Package / Case
56-VFQFN Exposed Pad
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Featured Products
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
CY8CLED04G01-56LTXI
2123235
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
For Use With
MPQ-PSOC
ISP 4PORT FOR PSOC MCU
15.557.000Â â‚« RPM Systems Corp
