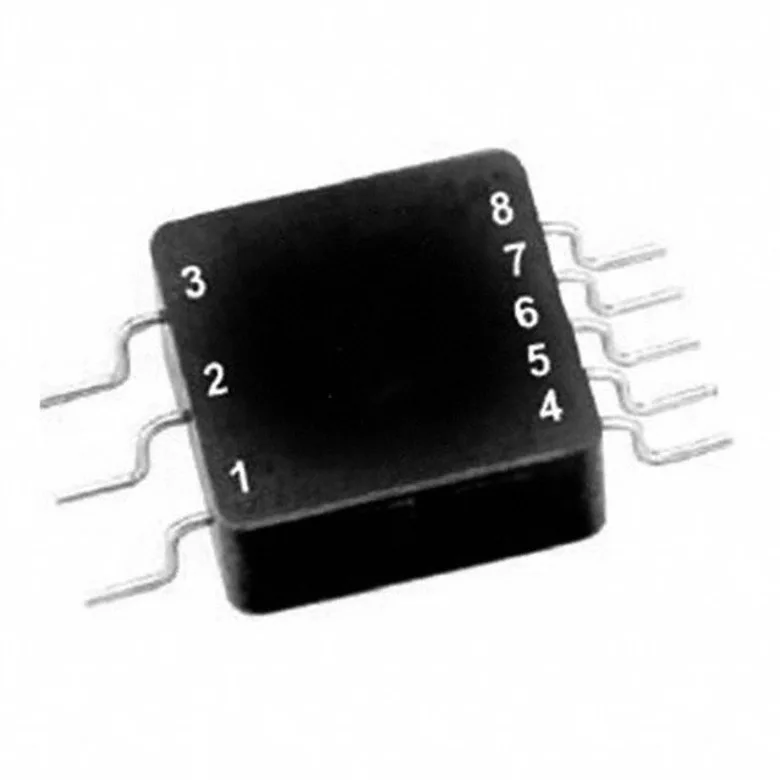

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
iNRCORE, LLC SMQT1553-10
Manufacturer
Manufacturer Product Number
SMQT1553-10
Description
TRANSFORMER PBC
Manufacturer Standard Lead Time Contact us
Detailed Description
MIL-STD-1553 Pulse Transformer 1CT:2.12CT, 1CT:1.5CT Surface Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
iNRCORE, LLC
Transformer Type
MIL-STD-1553
Turns Ratio - Primary:Secondary
1CT:2.12CT, 1CT:1.5CT
ET (Volt-Time)
-
Size / Dimension
0.624" L x 0.624" W (15.86mm x 15.86mm)
Mounting Type
Surface Mount
Height - Seated (Max)
0.250" (6.35mm)
Inductance
-
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
SMQT1553-10
8030165
SMQT1553-10-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 2.955.000Â â‚« 2.955.000Â â‚«
2.955.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
33
2.955.000Â â‚«
97.515.000Â â‚«
MOQ 33 · Order multiple 33
