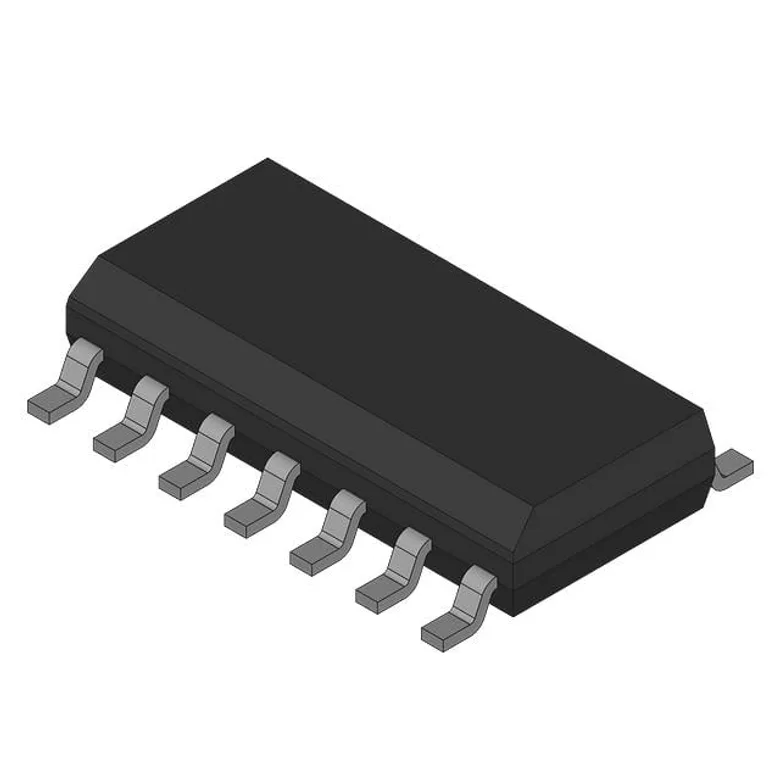

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Intersil ISL6522BCB
Manufacturer
Manufacturer Product Number
ISL6522BCB
Description
SWITCHING CONTROLLER
Manufacturer Standard Lead Time 10 Days
Detailed Description
Buck Regulator Positive Output Step-Down DC-DC Controller IC 14-SOIC
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Intersil
Product Status
Obsolete
Number of Outputs
1
Operating Temperature
0°C ~ 70°C (TA)
Output Configuration
Positive
Frequency - Switching
200kHz
Output Type
Transistor Driver
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Synchronous Rectifier
Yes
Package / Case
14-SOIC (0.154", 3.90mm Width)
Control Features
Enable, Frequency Control, Phase Control, Soft Start
Serial Interfaces
-
Output Phases
1
Duty Cycle (Max)
100%
Clock Sync
No
Topology
Buck
Function
Step-Down
Voltage - Supply (Vcc/Vdd)
10.8V ~ 13.2V
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ISL6522BCB
11550218
2156-ISL6522BCB-IL-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 364
Packaging Quantity Unit Price Ext Price
1 42.000 ₫ 42.000 ₫
42.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
188
42.000 ₫
7.896.000 ₫
MOQ 188 · Order multiple 188
