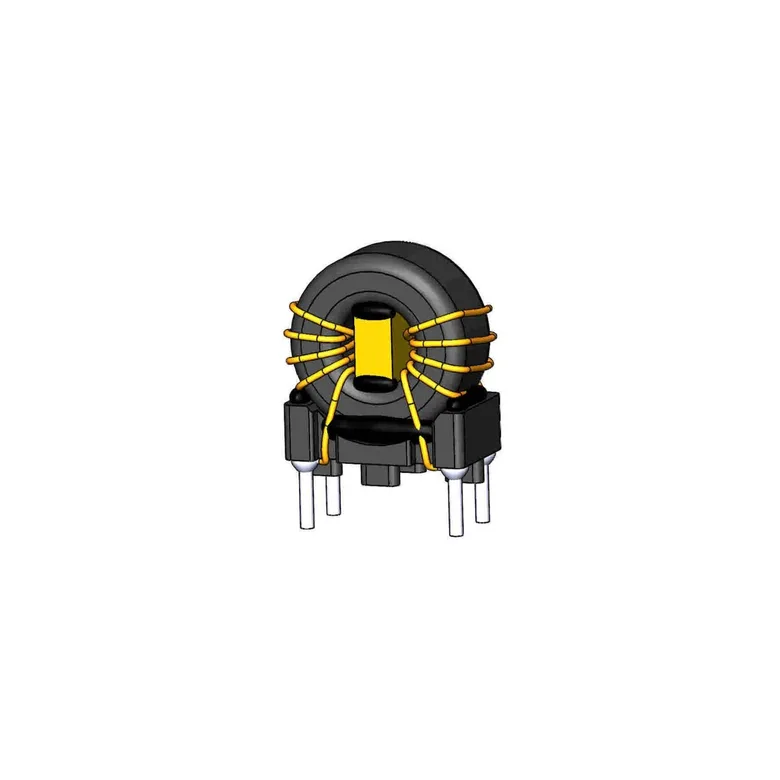

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
ITG Electronics, Inc. C201371B-401U
Manufacturer
Manufacturer Product Number
C201371B-401U
Description
CMC 0.4mH +50%/-30% 20mOhm 4.5A
Manufacturer Standard Lead Time 5 Days
Detailed Description
2 Line Common Mode Choke Through Hole 4.5A DCR 20mOhm
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
ITG Electronics, Inc.
Operating Temperature
-55° C ~ 125°C
Size / Dimension
0.591" L x 0.295" W (15.00mm x 7.50mm)
Mounting Type
Through Hole
Height (Max)
0.630" (16.00mm)
Voltage Rating - AC
300V
Current Rating (Max)
4.5A
DC Resistance (DCR) (Max)
20mOhm
Number of Lines
2
Filter Type
Power Line
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
C201371B-401U
29287563
3013-C201371B-401U-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 20
Packaging Quantity Unit Price Ext Price
1 265.000 ₫ 265.000 ₫
265.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
265.000 ₫
265.000 ₫
5
252.000 ₫
1.260.000 ₫
10
239.000 ₫
2.390.000 ₫
50
213.000 ₫
10.650.000 ₫
MOQ 1 · Order multiple 1
