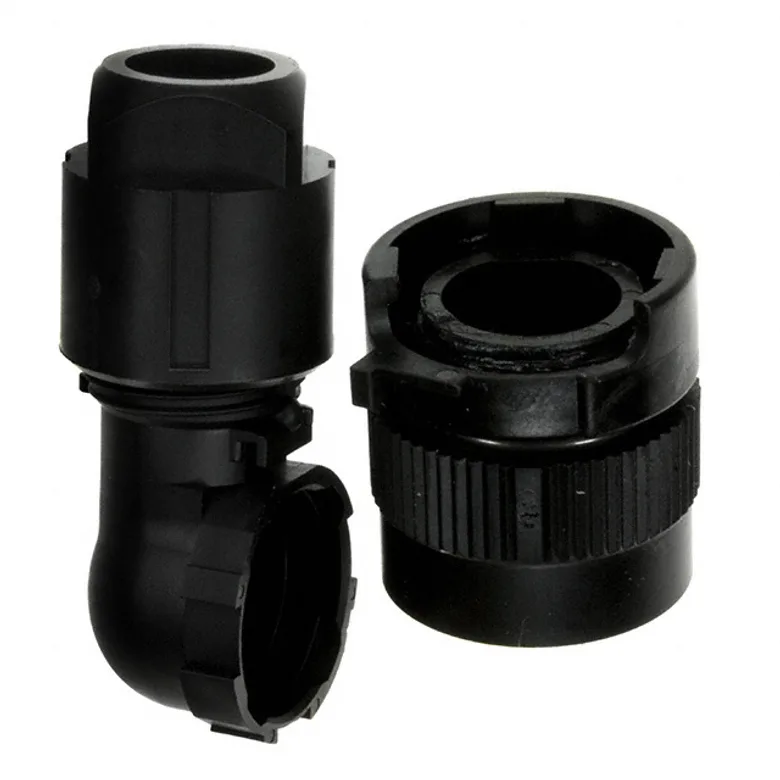

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
JAE Electronics JN1FS10SL2
Manufacturer
Manufacturer Product Number
JN1FS10SL2
Description
CONN PLG HSG FMAL 10PS INLINE RA
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN PLG HSG FMAL 10PS INLINE RA
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
JAE Electronics
Shell Size, MIL
-
Operating Temperature
-20°C ~ 125°C
Connector Type
Plug Housing
Features
Backshell, Coupling Nut, Rotatable
Contact Type
Crimp
Fastening Type
Push-Twist
Includes
-
Mounting Type
Free Hanging (In-Line), Right Angle
Ingress Protection
IP67 - Dust Tight, Waterproof
Contact Size
22
Shielding
Unshielded
Number of Positions
10
Material Flammability Rating
-
Note
Contacts Sold Separately
Housing Color
Black
Mounting Feature
-
Type
For Female Sockets
Contact Shape
Circular
Shell Material
Synthetic Resin
Shell Finish
-
Insert Material
Synthetic Resin
Orientation
N (Normal)
Shell Size - Insert
S
Documents & Media
Resource Type
Link
Datasheets
Drawings
Training Modules
Interactive Media
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
JN1FS10SL2
1283199
670-1066-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 339.000 ₫ 339.000 ₫
339.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
339.000 ₫
339.000 ₫
10
288.000 ₫
2.880.000 ₫
25
270.000 ₫
6.750.000 ₫
50
257.000 ₫
12.850.000 ₫
100
245.000 ₫
24.500.000 ₫
250
230.000 ₫
57.500.000 ₫
500
219.000 ₫
109.500.000 ₫
1,000
209.000 ₫
209.000.000 ₫
MOQ 1 · Order multiple 1
