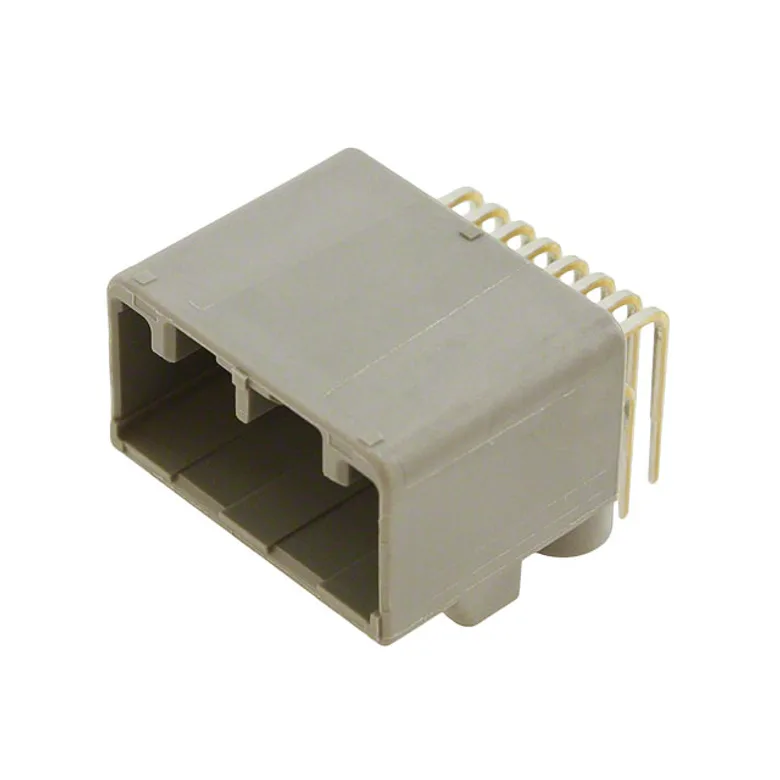

JAE Electronics MX34016NF1
Manufacturer
Manufacturer Product Number
MX34016NF1
Description
CONN HEADER R/A 16POS 2.2MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN HEADER R/A 16POS 2.2MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
JAE Electronics
Operating Temperature
-40°C ~ 85°C
Connector Type
Header
Applications
Automotive
Features
Board Lock
Contact Type
Male Pin
Fastening Type
Locking Ramp
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
-
Current Rating (Amps)
3A
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Mated Stacking Heights
-
Number of Positions
16
Number of Rows
2
Material Flammability Rating
-
Style
Board to Cable/Wire
Insulation Color
Gray
Pitch - Mating
0.087" (2.20mm)
Contact Finish - Mating
Tin
Contact Finish Thickness - Mating
-
Contact Finish - Post
Tin
Contact Finish Thickness - Post
-
Contact Material
Brass
Contact Shape
Square
Contact Length - Post
0.126" (3.20mm)
Insulation Height
0.626" (15.90mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Row Spacing - Mating
0.118" (3.00mm)
Contact Length - Mating
0.303" (7.70mm)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Drawings
Training Modules
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
MX34016NF1
2044200
670-2289-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,038
Packaging Quantity Unit Price Ext Price
1 45.000 ₫ 45.000 ₫
45.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
45.000 ₫
45.000 ₫
22
36.000 ₫
792.000 ₫
110
32.000 ₫
3.520.000 ₫
506
29.000 ₫
14.674.000 ₫
1,012
28.000 ₫
28.336.000 ₫
5,016
25.000 ₫
125.400.000 ₫
10,010
24.000 ₫
240.240.000 ₫
MOQ 1 · Order multiple 1
