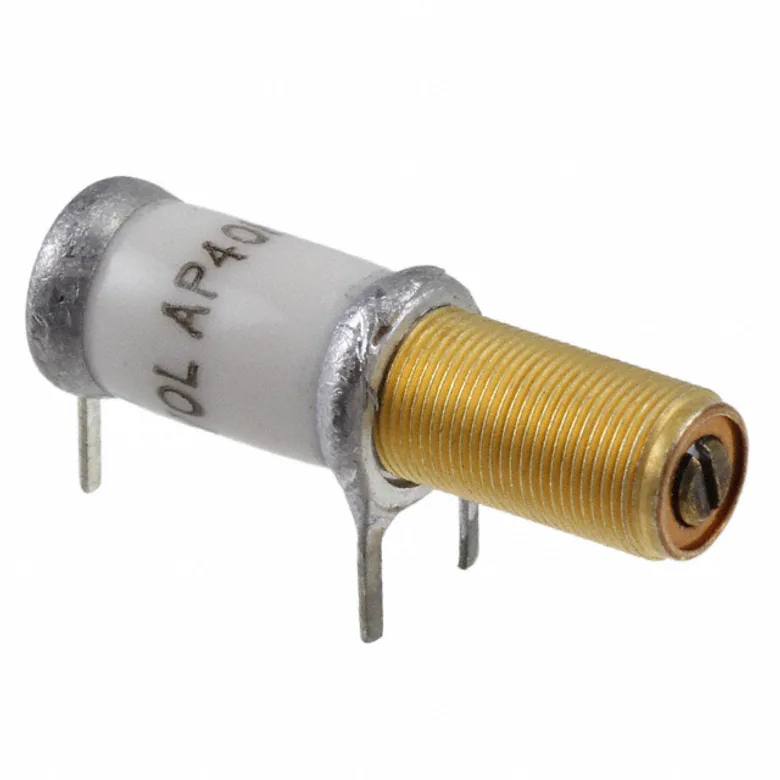

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Knowles Voltronics AP40SD
Manufacturer
Manufacturer Product Number
AP40SD
Description
CAP TRIMMER 1.5-40PF 250V TH
Manufacturer Standard Lead Time Contact us
Detailed Description
1.5 ~ 40pF Trimmer Capacitor 250 V Side Through Hole
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Knowles Voltronics
Adjustment Type
Side
Operating Temperature
-65°C ~ 125°C
Capacitance Range
1.5 ~ 40pF
Size / Dimension
0.220" Dia (5.59mm)
Features
General Purpose
Mounting Type
Through Hole
Q @ Freq
2000 @ 100MHz
Dielectric Material
Polytetrafluoroethylene (PTFE)
Height - Seated (Max)
1.000" (25.40mm)
Voltage - Rated
250 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AP40SD
7261418
1674-1054-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 9
Packaging Quantity Unit Price Ext Price
1 2.294.000 ₫ 2.294.000 ₫
2.294.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
2.294.000 ₫
2.294.000 ₫
10
1.972.000 ₫
19.720.000 ₫
50
1.843.000 ₫
92.150.000 ₫
100
1.803.000 ₫
180.300.000 ₫
MOQ 1 · Order multiple 1
