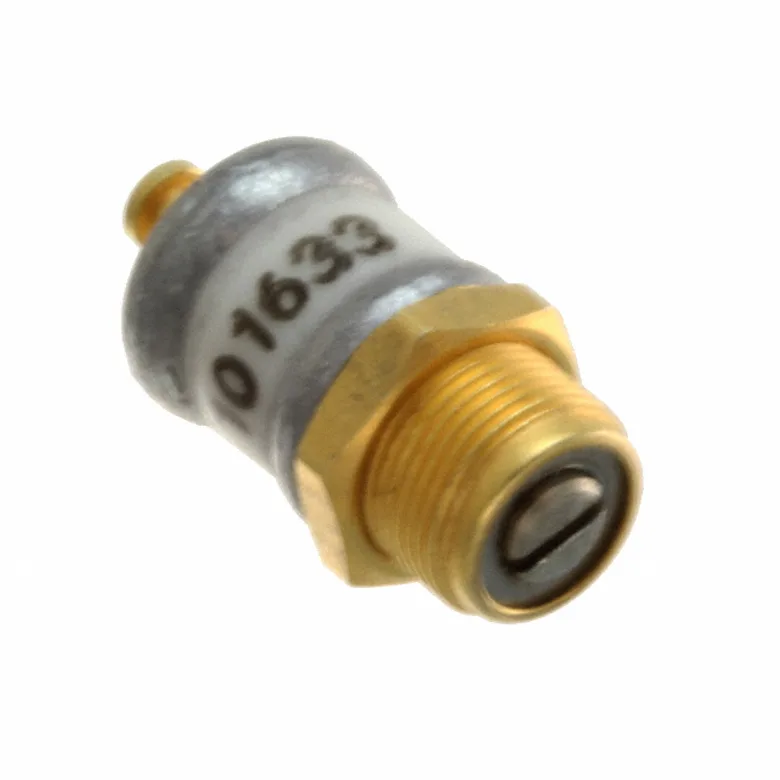

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Knowles Voltronics AT10HV
Manufacturer
Manufacturer Product Number
AT10HV
Description
CAP TRIMMER 1-10PF 1000V PNL MNT
Manufacturer Standard Lead Time Contact us
Detailed Description
1 ~ 10pF Trimmer Capacitor 1000 V Top Panel Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Knowles Voltronics
Adjustment Type
Top
Operating Temperature
-65°C ~ 125°C
Capacitance Range
1 ~ 10pF
Size / Dimension
0.280" Dia (7.11mm)
Features
General Purpose
Mounting Type
Panel Mount
Q @ Freq
2000 @ 100MHz
Dielectric Material
Polytetrafluoroethylene (PTFE)
Height - Seated (Max)
0.480" (12.19mm)
Voltage - Rated
1000 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AT10HV
7261419
1674-1056-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 79
Packaging Quantity Unit Price Ext Price
1 1.493.000 ₫ 1.493.000 ₫
1.493.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
1.493.000 ₫
1.493.000 ₫
10
1.257.000 ₫
12.570.000 ₫
50
1.163.000 ₫
58.150.000 ₫
100
1.134.000 ₫
113.400.000 ₫
MOQ 1 · Order multiple 1
