Image shown is representative only. Exact specifications should be obtained from the product datasheet.

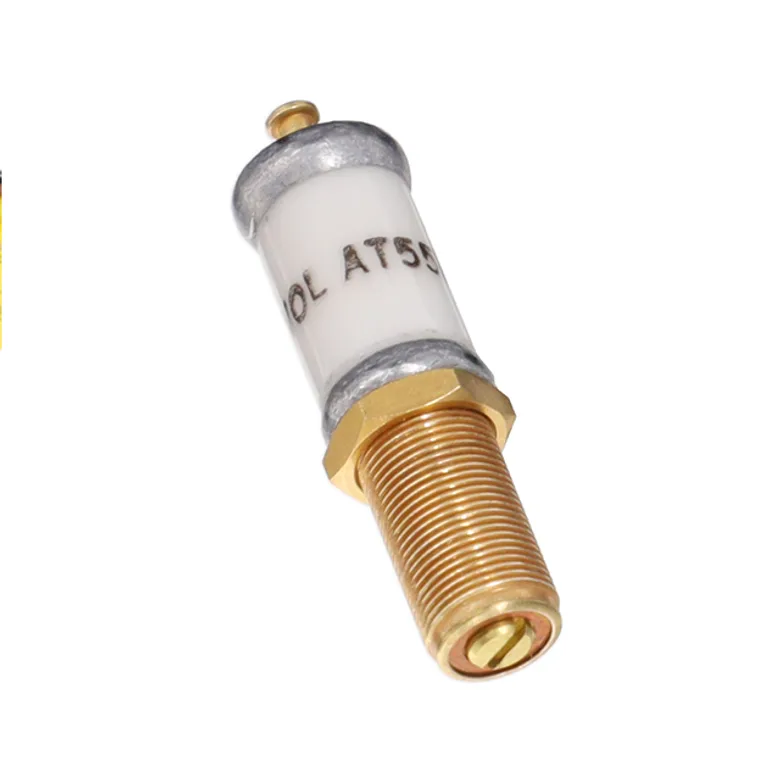

Knowles Voltronics AT55HV
Manufacturer
Manufacturer Product Number
AT55HV
Description
CAP TRIMMER 1.5-55PF 600V PNL MT
Manufacturer Standard Lead Time Contact us
Detailed Description
1.5 ~ 55pF Trimmer Capacitor 600 V Top Panel Mount
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Knowles Voltronics
Adjustment Type
Top
Operating Temperature
-65°C ~ 125°C
Capacitance Range
1.5 ~ 55pF
Size / Dimension
0.300" Dia (7.62mm)
Features
General Purpose
Mounting Type
Panel Mount
Q @ Freq
780 @ 100MHz
Dielectric Material
Polytetrafluoroethylene (PTFE)
Height - Seated (Max)
0.980" (24.89mm)
Voltage - Rated
600 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
AT55HV
8566347
AT55HV-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 143
Packaging Quantity Unit Price Ext Price
1 2.666.000 ₫ 2.666.000 ₫
2.666.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
2.666.000 ₫
2.666.000 ₫
10
2.307.000 ₫
23.070.000 ₫
50
2.163.000 ₫
108.150.000 ₫
100
2.119.000 ₫
211.900.000 ₫
MOQ 1 · Order multiple 1
