Image shown is representative only. Exact specifications should be obtained from the product datasheet.

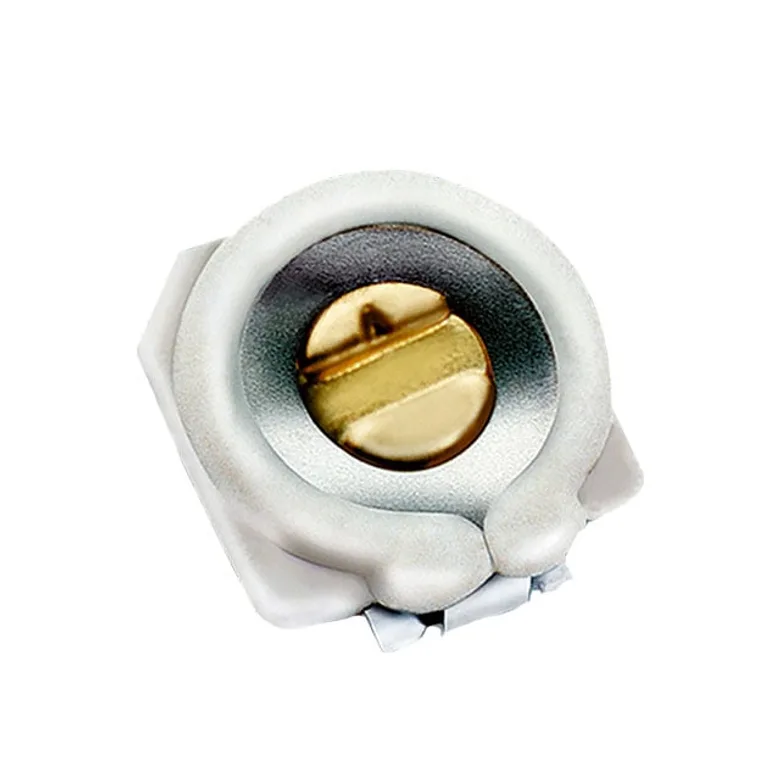

Knowles Voltronics JR400HV
Manufacturer
Manufacturer Product Number
JR400HV
Description
CAP TRIMMER 8-40PF 350V SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
CAP TRIMMER 8-40PF 350V SMD
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Knowles Voltronics
Adjustment Type
Top
Operating Temperature
-40°C ~ 85°C
Capacitance Range
8 ~ 40pF
Size / Dimension
0.138" L x 0.122" W (3.50mm x 3.10mm)
Features
General Purpose
Mounting Type
Surface Mount
Q @ Freq
200 @ 1MHz
Dielectric Material
Ceramic
Height - Seated (Max)
0.045" (1.15mm)
Voltage - Rated
350 V
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
JR400HV
17955967
1674-JR400HVTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,000
Packaging Quantity Unit Price Ext Price
1 69.000 ₫ 69.000 ₫
69.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
69.000 ₫
69.000.000 ₫
2,000
67.000 ₫
134.000.000 ₫
3,000
66.000 ₫
198.000.000 ₫
MOQ 1,000 · Order multiple 1,000
