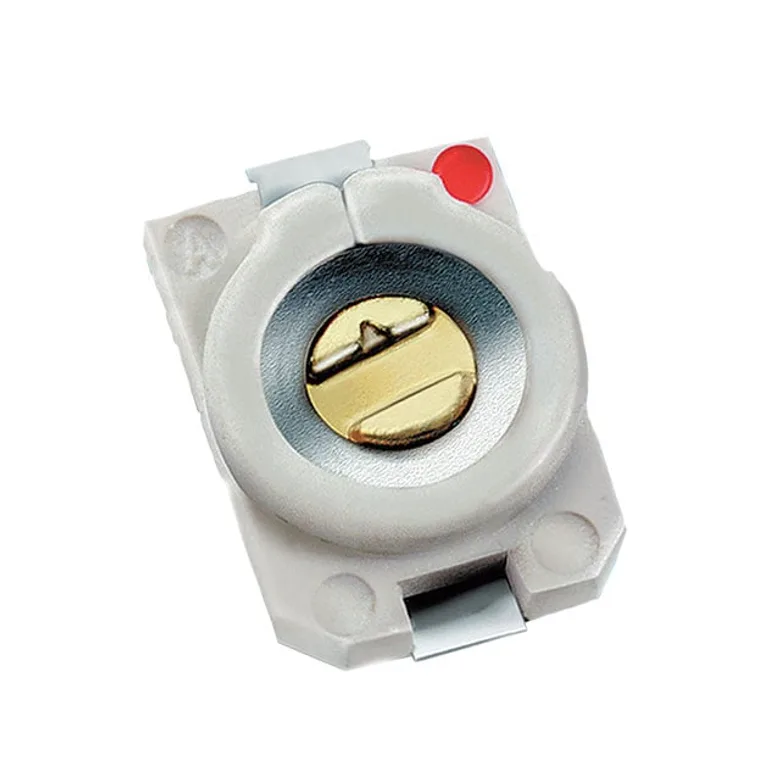

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Knowles Voltronics JZ300HV
Manufacturer
Manufacturer Product Number
JZ300HV
Description
CAP TRIMMER 5.5-30PF 350V SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
CAP TRIMMER 5.5-30PF 350V SMD
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Knowles Voltronics
Adjustment Type
Top
Operating Temperature
-40°C ~ 85°C
Capacitance Range
5.5 ~ 30pF
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
Features
General Purpose
Mounting Type
Surface Mount
Q @ Freq
1500 @ 1MHz
Dielectric Material
Ceramic
Height - Seated (Max)
0.057" (1.45mm)
Voltage - Rated
350 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
JZ300HV
6021652
1674-1013-1-ND
1674-1013-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 530
Packaging Quantity Unit Price Ext Price
1 115.000 ₫ 115.000 ₫
115.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
115.000 ₫
115.000 ₫
10
82.000 ₫
820.000 ₫
50
69.000 ₫
3.450.000 ₫
100
65.000 ₫
6.500.000 ₫
500
58.000 ₫
29.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
115.000 ₫
115.000 ₫
10
82.000 ₫
820.000 ₫
50
69.000 ₫
3.450.000 ₫
100
65.000 ₫
6.500.000 ₫
500
58.000 ₫
29.000.000 ₫
MOQ 1 · Order multiple 1
