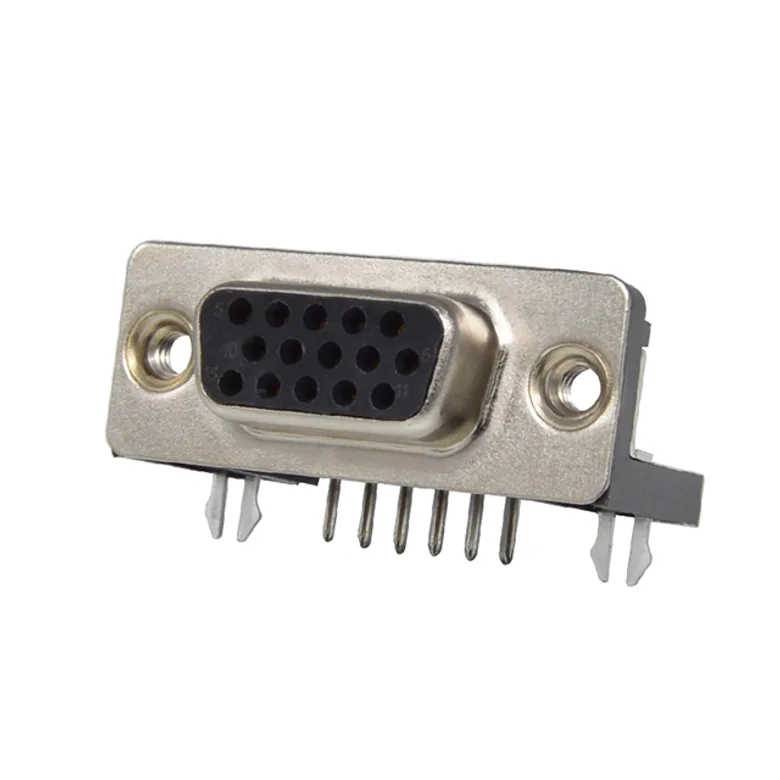

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Kycon, Inc. K66X-E15S-N
Manufacturer
Manufacturer Product Number
K66X-E15S-N
Description
CONN D-SUB HD RCPT 15P R/A SLDR
Manufacturer Standard Lead Time Contact us
Detailed Description
15 Position D-Sub, High Density Receptacle, Female Sockets Connector
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Kycon, Inc.
Operating Temperature
-55°C ~ 75°C
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Color
Black
Features
Board Lock
Contact Type
Signal
Flange Feature
Housing/Shell (4-40)
Termination
Solder
Voltage Rating
29VAC
Current Rating (Amps)
1.5A
Mounting Type
Through Hole, Right Angle
Ingress Protection
-
Wire Gauge
-
Connector Style
D-Sub, High Density
Contact Finish Thickness
Flash
Number of Positions
15
Number of Rows
3
Material Flammability Rating
UL94 V-0
Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled
Shell Size, Connector Layout
1 (DE, E) High Density
Contact Form
-
Shell Material, Finish
Steel, Nickel Plated
Contact Material
Phosphor Bronze
Backset Spacing
0.350" (8.89mm)
Documents & Media
Resource Type
Link
CAD Models
Drawings
Related Documents
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
K66X-E15S-N
9990164
2092-K66X-E15S-N-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 3,303
Packaging Quantity Unit Price Ext Price
1 82.000 ₫ 82.000 ₫
82.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
82.000 ₫
82.000 ₫
10
70.000 ₫
700.000 ₫
45
63.000 ₫
2.835.000 ₫
90
60.000 ₫
5.400.000 ₫
135
58.000 ₫
7.830.000 ₫
270
56.000 ₫
15.120.000 ₫
540
53.000 ₫
28.620.000 ₫
1,035
51.000 ₫
52.785.000 ₫
2,520
48.000 ₫
120.960.000 ₫
MOQ 1 · Order multiple 1
For Use With
JSX-1065
JACK SCREW 4-40 6.5MM
7.000 ₫ Kycon, Inc.
JSX-M1055
JACK SCREW 4-40 EX/M3 IN 5MM
15.000 ₫ Kycon, Inc.
Substitutes
HDL15-SL-B
CONN D-SUB HD RCPT 15P R/A SLDR
36.000 ₫ Adam Tech
181-015-213R171
CONN D-SUB HD RCPT 15P R/A SLDR
116.000 ₫ NorComp Inc.
