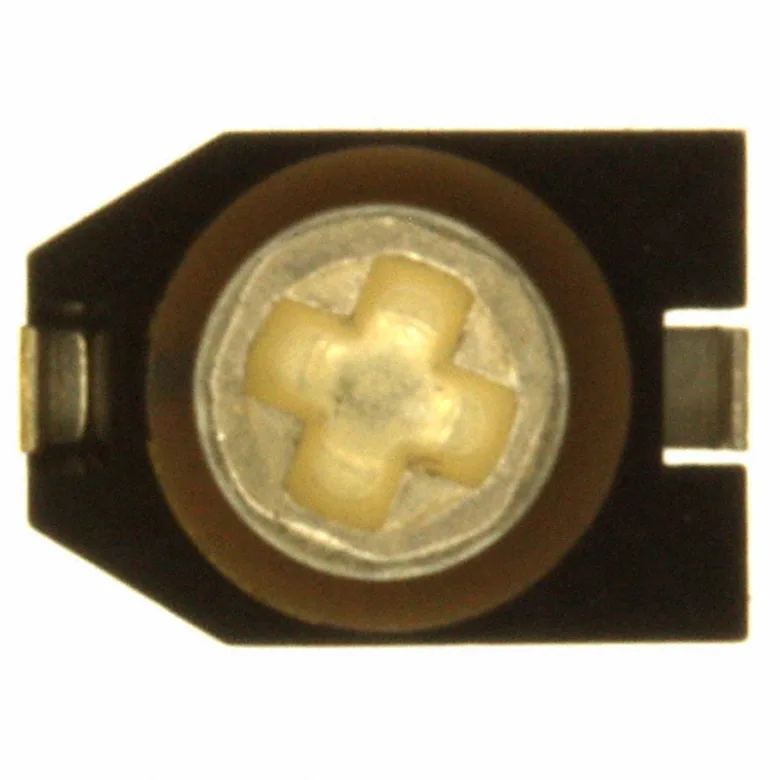

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
KYOCERA AVX CTZ3E-40C-W1-PF
Manufacturer
Manufacturer Product Number
CTZ3E-40C-W1-PF
Description
CAP TRIMMER 4.5-40PF 25V SMD
Manufacturer Standard Lead Time Contact us
Detailed Description
4.5 ~ 40pF Trimmer Capacitor 25 V Top Surface Mount
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
KYOCERA AVX
Product Status
Obsolete
Adjustment Type
Top
Operating Temperature
-40°C ~ 85°C
Capacitance Range
4.5 ~ 40pF
Size / Dimension
0.177" L x 0.126" W (4.50mm x 3.20mm)
Features
Low Profile
Mounting Type
Surface Mount
Q @ Freq
300 @ 1MHz
Dielectric Material
Ceramic
Height - Seated (Max)
0.071" (1.80mm)
Voltage - Rated
25 V
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
CTZ3E-40C-W1-PF
1279428
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
CTZ3E-40C-X1-PF
CAP TRIMMER 4.5-40PF 25V SMD
13.000Â â‚« KYOCERA AVX
