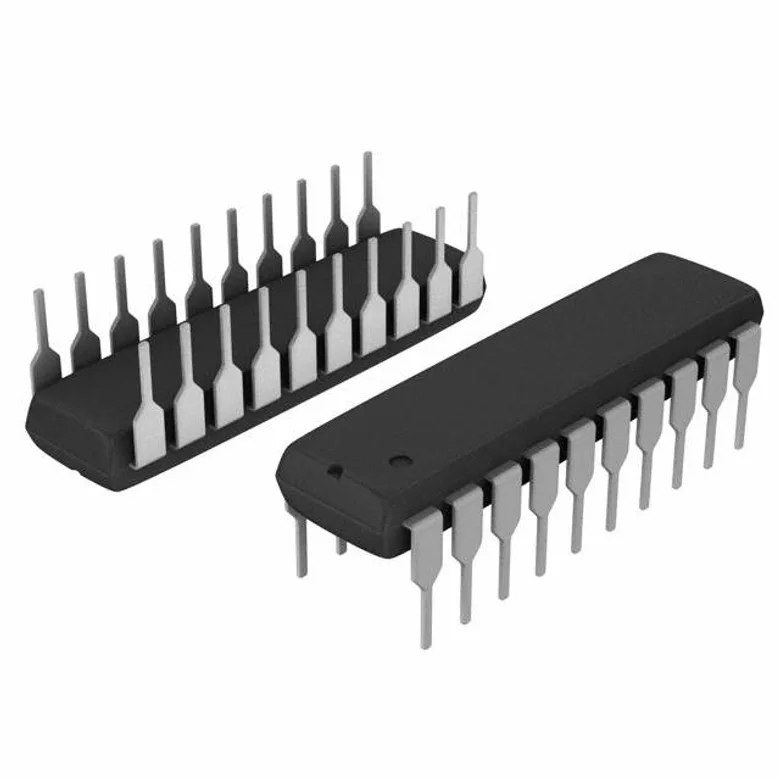

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Lattice Semiconductor Corporation GAL16V8D-15QP
Manufacturer
Manufacturer Product Number
GAL16V8D-15QP
Description
IC CPLD 8MC 15NS 20DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
GAL®16V8 Programmable Logic Device (PLD) IC 8 Macrocells 20-PDIP
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Lattice Semiconductor Corporation
Product Status
Obsolete
DigiKey Programmable
Not Verified
Mounting Type
Through Hole
Supplier Device Package
20-PDIP
Programmable Type
EE PLD
Number of Macrocells
8
Package / Case
20-DIP (0.300", 7.62mm)
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
GAL16V8D-15QP
3928724
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
