Lattice Semiconductor Corporation LC4064B-75TN100C

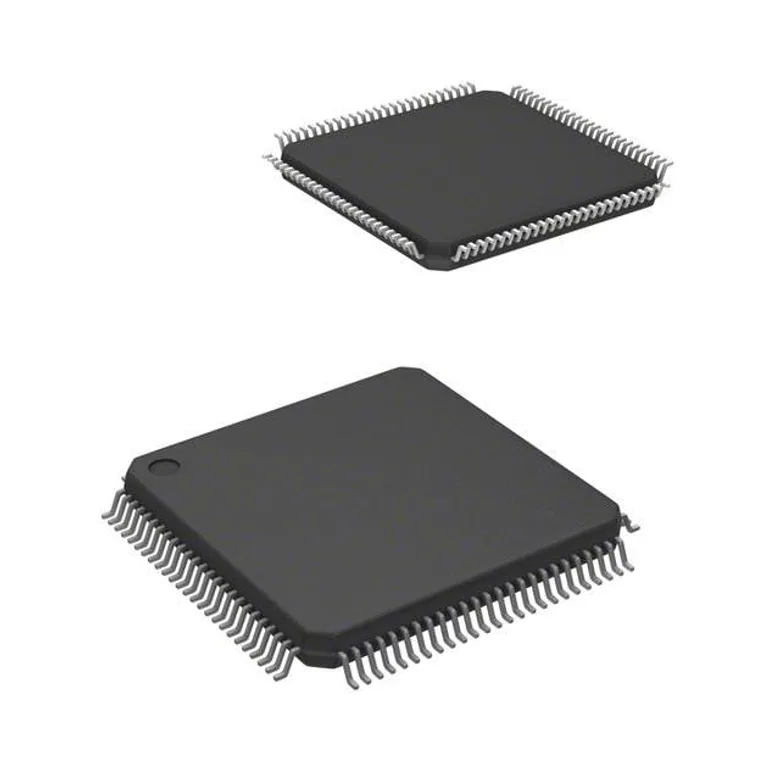

Image shown is representative only. Exact specifications should be obtained from the product datasheet.

Lattice Semiconductor Corporation LC4064B-75TN100C

Manufacturer Product Number
LC4064B-75TN100C
Description

IC CPLD 64MC 7.5NS 100TQFP

Manufacturer Standard Lead Time Contact us
Detailed Description

IC CPLD 64MC 7.5NS 100TQFP

EDA/CAD Models
View model

Product Attributes

Type
Description
Categories
Integrated Circuits (ICs)
Embedded
CPLDs (Complex Programmable Logic Devices)
Manufacturer
Lattice Semiconductor Corporation
Product Status
Obsolete
Number of I/O
64
Operating Temperature
0°C ~ 90°C (TJ)
DigiKey Programmable
Not Verified
Delay Time tpd(1) Max
7.5 ns
Mounting Type
Surface Mount
Supplier Device Package
100-TQFP (14x14)
Number of Logic Elements/Blocks
4
Voltage Supply - Internal
2.3V ~ 2.7V
Programmable Type
In System Programmable
Number of Macrocells
64
Package / Case
100-LQFP
View similar

Documents & Media

Resource Type
Link
Datasheets
Product Selector Guide Package Diagrams ispMACH 4000V,B,C,Z Family
EDA Models
LC4064B-75TN100C by Ultra Librarian
Product Change Notices
Alternate Assembly/Test Site 06/Oct/2014 Multiple Devices Cu Wire 01/Jul/2013 Top Mark Format Change 20/Dec/2023 All Dev Pkg Mark Chg 12/Nov/2018 Tin/Lead Devices 23/Jun/2015

Environmental & Export Classifications

Attribute
Description
Product Status
Obsolete

Additional Resources

Attribute
Description
Part Number Alias
LC4064B-75TN100C 2751507
Availability
Out of Stock
Updated
5/16/2026

In-Stock: 0

Packaging Quantity Unit Price Ext Price
1 0 ₫ 0 ₫

0 ₫

All prices are shown in the selected currency

For Use With

Lattice Semiconductor Corporation HW-DLN-3C

HW-DLN-3C

ACCY ISP CABLE 8PIN AMP 10P CONN

1.789.000 ₫ Lattice Semiconductor Corporation
