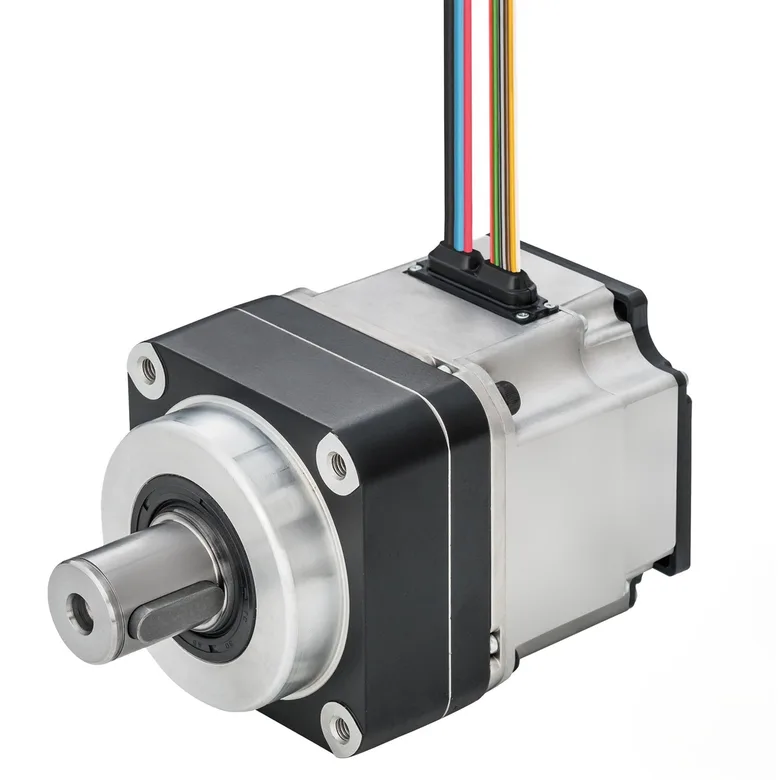

Mabuchi Motor MR94BZA-A123
Manufacturer
Manufacturer Product Number
MR94BZA-A123
Description
BLDC 24V RESOLVER 85MM 10:1 GB
Manufacturer Standard Lead Time Contact us
Detailed Description
BLDC 24V RESOLVER 85MM 10:1 GB
Product Attributes
Type
Description
Manufacturer
Mabuchi Motor
Operating Temperature
-10°C ~ 50°C
Termination Style
Cable with Connector
Encoder Type
-
Size / Dimension
Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Features
Resolver
Power - Rated
180W
Approval Agency
-
RPM
200 RPM
Voltage - Rated
24VDC
Length - Shaft and Bearing
1.260" (32.00mm)
Gear Reduction Ratio
10
Type
DC Motor
Diameter - Shaft
0.984" (25.00mm)
Mounting Hole Spacing
3.740" (95.00mm)
Torque - Rated (oz-in / mNm)
1217 / 8600
Torque - Max Momentary (oz-in / mNm)
2435 / 17200
Function
Gearmotor
Weight
5.5 lbs (2.5 kg)
Documents & Media
Resource Type
Link
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
MR94BZA-A123
25969157
5888-MR94BZA-A123-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4
Packaging Quantity Unit Price Ext Price
1 17.662.000 ₫ 17.662.000 ₫
17.662.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
17.662.000 ₫
17.662.000 ₫
5
15.622.000 ₫
78.110.000 ₫
10
14.892.000 ₫
148.920.000 ₫
MOQ 1 · Order multiple 1
