Image shown is representative only. Exact specifications should be obtained from the product datasheet.

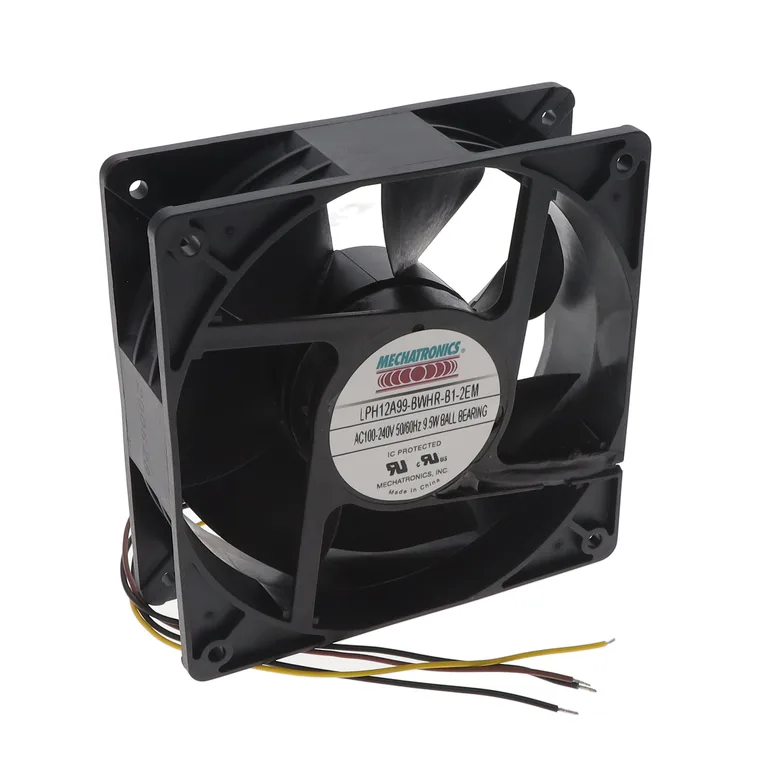

Mechatronics Fan Group LPH12A99-BWHR-B1-2EM
Manufacturer
Manufacturer Product Number
LPH12A99-BWHR-B1-2EM
Description
EC FAN AXIAL 120X120X38MM 100-24
Manufacturer Standard Lead Time Contact us
Detailed Description
Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47m³/min) 3 Wire Leads
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Mechatronics Fan Group
Operating Temperature
-
Size / Dimension
Square - 120mm L x 120mm H
Features
Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)
Voltage Range
90 ~ 264VAC
Bearing Type
Ball
Termination
3 Wire Leads
Current Rating (Amps)
0.180A
Approval Agency
-
Ingress Protection
IP68 - Dust Tight, Waterproof
Lifetime @ Temp.
-
Fan Type
Tubeaxial
Noise
49.0dB(A)
Static Pressure
0.363 in H2O (90.5 Pa)
RPM
3500 RPM
Voltage - Rated
100 ~ 240VAC
Material - Frame
Plastic
Material - Blade
Plastic
Air Flow
123.9 CFM (3.47m³/min)
Width
38.50mm
Power (Watts)
9.50W
Weight
0.631 lb (286.20 g)
Documents & Media
Resource Type
Link
Datasheets
Related Documents
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
LPH12A99-BWHR-B1-2EM
9962940
1570-1937-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 41
Packaging Quantity Unit Price Ext Price
1 1.054.000Â â‚« 1.054.000Â â‚«
1.054.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
1.054.000Â â‚«
1.054.000Â â‚«
10
860.000Â â‚«
8.600.000Â â‚«
40
752.000Â â‚«
30.080.000Â â‚«
80
702.000Â â‚«
56.160.000Â â‚«
120
675.000Â â‚«
81.000.000Â â‚«
280
648.000Â â‚«
181.440.000Â â‚«
MOQ 1 · Order multiple 1
