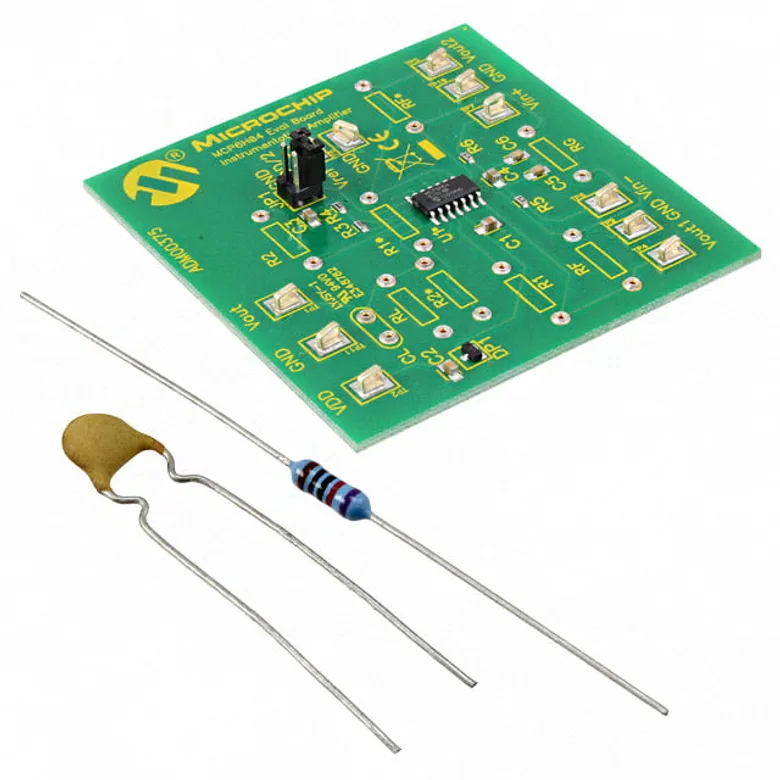

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ADM00375
Manufacturer
Manufacturer Product Number
ADM00375
Description
BOARD EVAL FOR MCP6H04 OP AMP
Manufacturer Standard Lead Time Contact us
Detailed Description
MCP6H04 - 4 - Quad Channels per IC Standard (General Purpose) Amplifier Evaluation Board
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Contents
Board(s)
Output Type
Single-Ended, Rail-to-Rail
Slew Rate
0.8V/µs
Gain Bandwidth Product
1.2MHz
Voltage - Supply, Single/Dual (±)
3.5V ~ 16V, ±1.75V ~ 8V
Utilized IC / Part
MCP6H04
Channels per IC
4 - Quad
Note
-
Amplifier Type
Standard (General Purpose)
Current - Output / Channel
50mA
Current - Supply (Main IC)
135µA
-3db Bandwidth
-
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ADM00375
3131720
ADM00375-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 624.000 ₫ 624.000 ₫
624.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
6
624.000 ₫
3.744.000 ₫
MOQ 6 · Order multiple 6
