Image shown is representative only. Exact specifications should be obtained from the product datasheet.

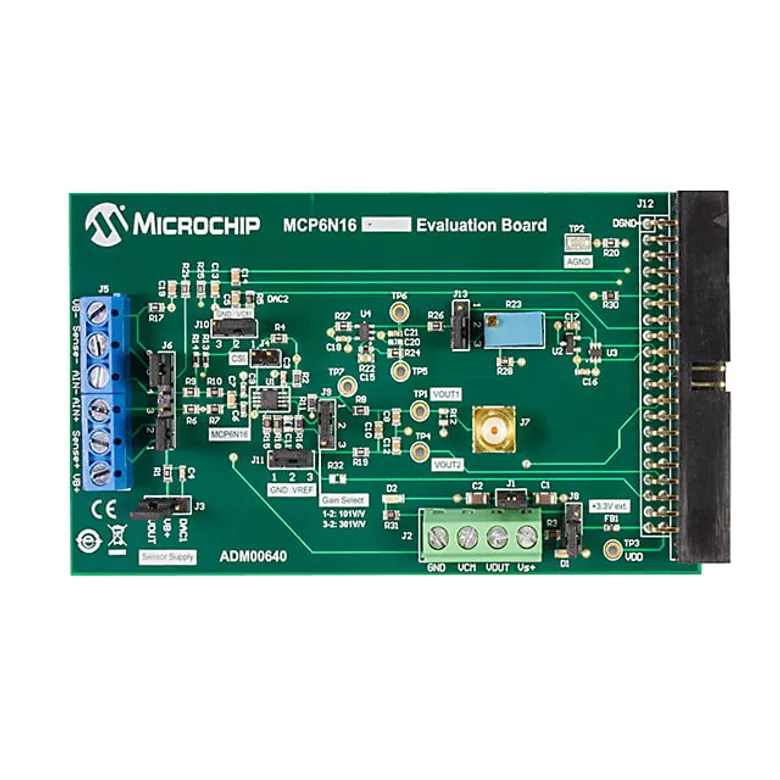

Microchip Technology ADM00640
Manufacturer
Manufacturer Product Number
ADM00640
Description
EVAL BOARD FOR MCP6N16
Manufacturer Standard Lead Time Contact us
Detailed Description
EVAL BOARD FOR MCP6N16
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Contents
Board(s)
Output Type
Single-Ended, Rail-to-Rail
Slew Rate
-
Gain Bandwidth Product
35MHz
Voltage - Supply, Single/Dual (±)
1.8V ~ 5.5V
Utilized IC / Part
MCP6N16
Channels per IC
1 - Single
Note
-
Amplifier Type
Instrumentation
Current - Output / Channel
10mA
Current - Supply (Main IC)
1.1mA
-3db Bandwidth
-
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Training Modules
Environmental Information
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ADM00640
5401225
ADM00640-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2
Packaging Quantity Unit Price Ext Price
1 2.583.000 ₫ 2.583.000 ₫
2.583.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
2.583.000 ₫
2.583.000 ₫
MOQ 1 · Order multiple 1
For Use With
MCP6N16-100E/MS
IC INST AMP 1 CIRCUIT 8MSOP
69.000 ₫ Microchip Technology
MCP6N16-010E/MS
IC INST AMP 1 CIRCUIT 8MSOP
69.000 ₫ Microchip Technology
MCP6N16-100E/MF
IC INST AMP 1 CIRCUIT 8DFN
69.000 ₫ Microchip Technology
MCP6N16-001E/MF
IC INST AMP 1 CIRCUIT 8DFN
69.000 ₫ Microchip Technology
MCP6N16-001E/MS
IC INST AMP 1 CIRCUIT 8MSOP
69.000 ₫ Microchip Technology
MCP6N16T-100E/MS
IC INST AMP 1 CIRCUIT 8MSOP
58.000 ₫ Microchip Technology
MCP6N16T-100E/MF
IC INST AMP 1 CIRCUIT 8DFN
58.000 ₫ Microchip Technology
MCP6N16T-010E/MF
IC INST AMP 1 CIRCUIT 8DFN
58.000 ₫ Microchip Technology
MCP6N16T-001E/MS
IC INST AMP 1 CIRCUIT 8MSOP
58.000 ₫ Microchip Technology
MCP6N16T-001E/MF
IC INST AMP 1 CIRCUIT 8DFN
58.000 ₫ Microchip Technology
MCP6N16-010E/MF
IC INST AMP 1 CIRCUIT 8DFN
58.000 ₫ Microchip Technology
