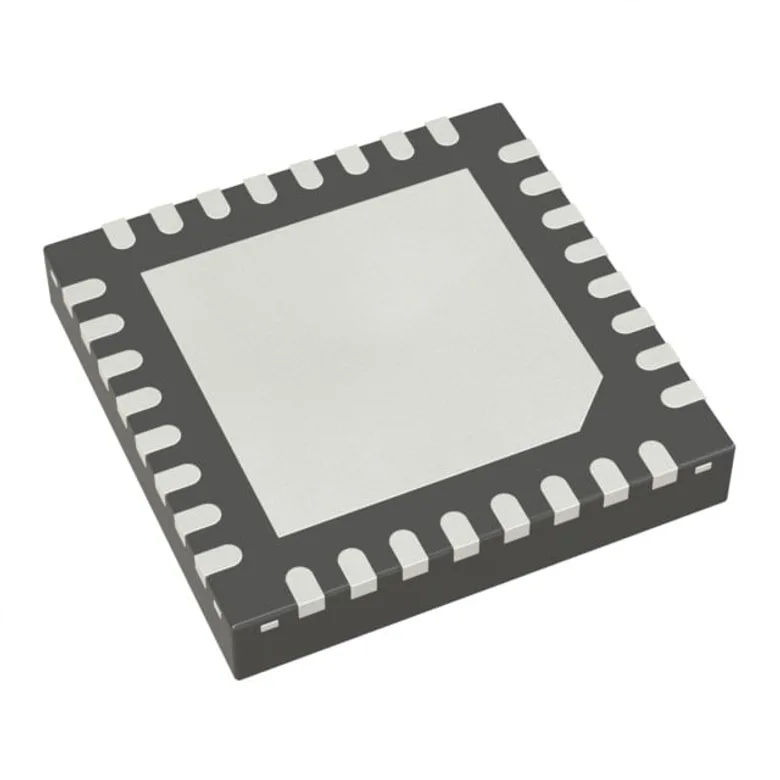

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATA5795C-PNQW
Manufacturer
Manufacturer Product Number
ATA5795C-PNQW
Description
RF TX IC ISM 315-433MHZ 32VFQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
RF Transmitter ISM 315MHz ~ 433MHz 8dBm Antenna 32-VFQFN Exposed Pad
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Antenna Connector
-
Data Interface
SPI
Operating Temperature
-40°C ~ 85°C
DigiKey Programmable
Not Verified
Voltage - Supply
1.9V ~ 3.6V
Power - Output
8dBm
Applications
General Purpose
Features
-
Mounting Type
Surface Mount
Data Rate (Max)
-
Current - Transmitting
58mA
Supplier Device Package
32-QFN (5x5)
Frequency
315MHz ~ 433MHz
Memory Size
8kB Flash, 512B SRAM
Package / Case
32-VFQFN Exposed Pad
Modulation or Protocol
ISM
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Environmental Information
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATA5795C-PNQW
5235948
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
