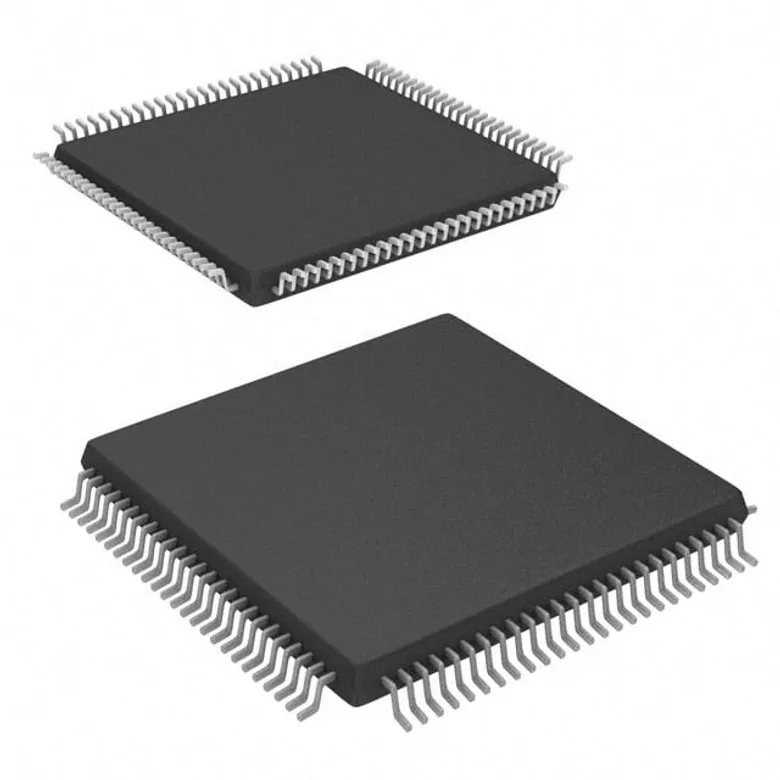

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATF1508RE-5AX100
Manufacturer
Manufacturer Product Number
ATF1508RE-5AX100
Description
IC CPLD 128MC 5NS 100TQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC CPLD 128MC 5NS 100TQFP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Number of I/O
80
Operating Temperature
0°C ~ 70°C (TA)
DigiKey Programmable
Not Verified
Delay Time tpd(1) Max
5 ns
Mounting Type
Surface Mount
Supplier Device Package
100-TQFP (14x14)
Voltage Supply - Internal
3V ~ 3.6V
Programmable Type
In System Programmable (min 10K program/erase cycles)
Number of Macrocells
128
Package / Case
100-TQFP
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATF1508RE-5AX100
2051056
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
ATF1508ASV-15AU100
IC CPLD 128MC 15NS 100TQFP
153.000Â â‚« Microchip Technology
