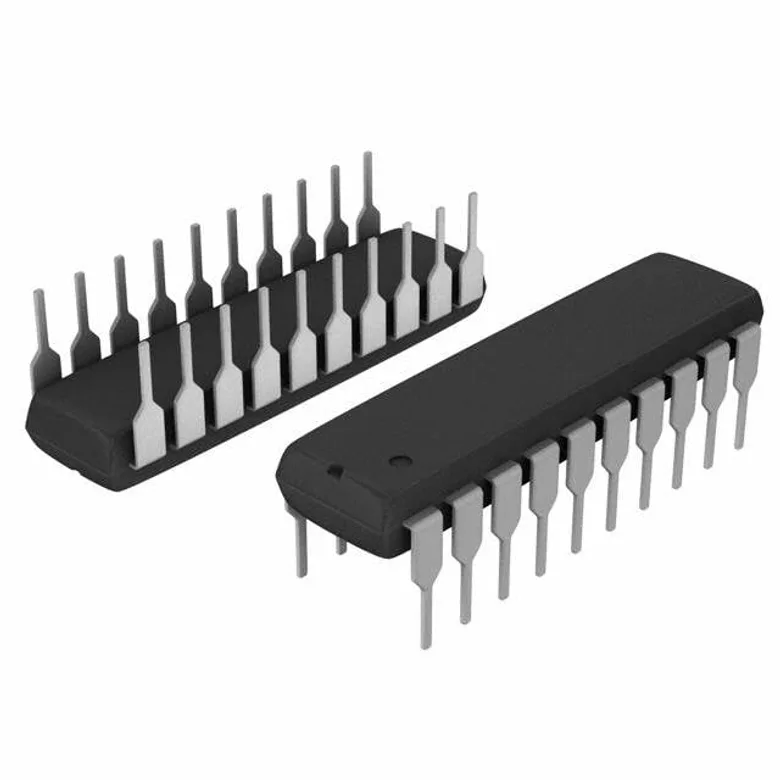

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATF16V8BQL-15PU
Manufacturer
Manufacturer Product Number
ATF16V8BQL-15PU
Description
IC PLD 8MC 15NS 20DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC PLD 8MC 15NS 20DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Speed
15 ns
DigiKey Programmable
Verified
Mounting Type
Through Hole
Voltage - Input
5V
Supplier Device Package
20-PDIP
Programmable Type
EE PLD
Number of Macrocells
8
Package / Case
20-DIP (0.300", 7.62mm)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
ATF16V8BQL-15PU
1008412
ATF16V8BQL-15PU-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 6,610
Packaging Quantity Unit Price Ext Price
1 39.000Â â‚« 39.000Â â‚«
39.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
39.000Â â‚«
39.000Â â‚«
25
36.000Â â‚«
900.000Â â‚«
100
34.000Â â‚«
3.400.000Â â‚«
MOQ 1 · Order multiple 1
