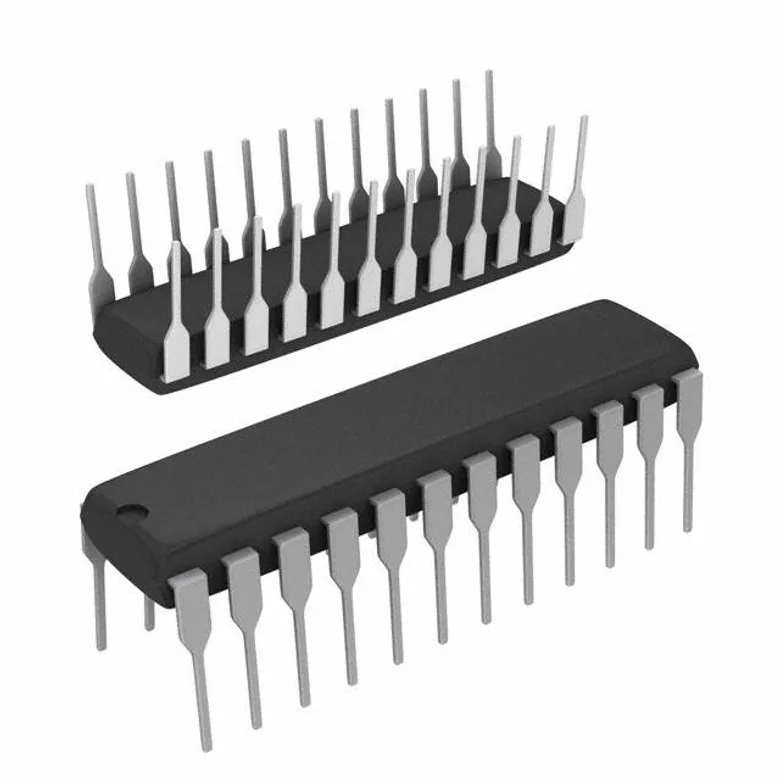

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATF20V8B-10PU
Manufacturer
Manufacturer Product Number
ATF20V8B-10PU
Description
IC PLD 8MC 10NS 24DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
20V8 Programmable Logic Device (PLD) IC 8 Macrocells 24-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Speed
10 ns
DigiKey Programmable
Not Verified
Mounting Type
Through Hole
Voltage - Input
5V
Supplier Device Package
24-PDIP
Programmable Type
EE PLD
Number of Macrocells
8
Package / Case
24-DIP (0.300", 7.62mm)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATF20V8B-10PU
1008414
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
