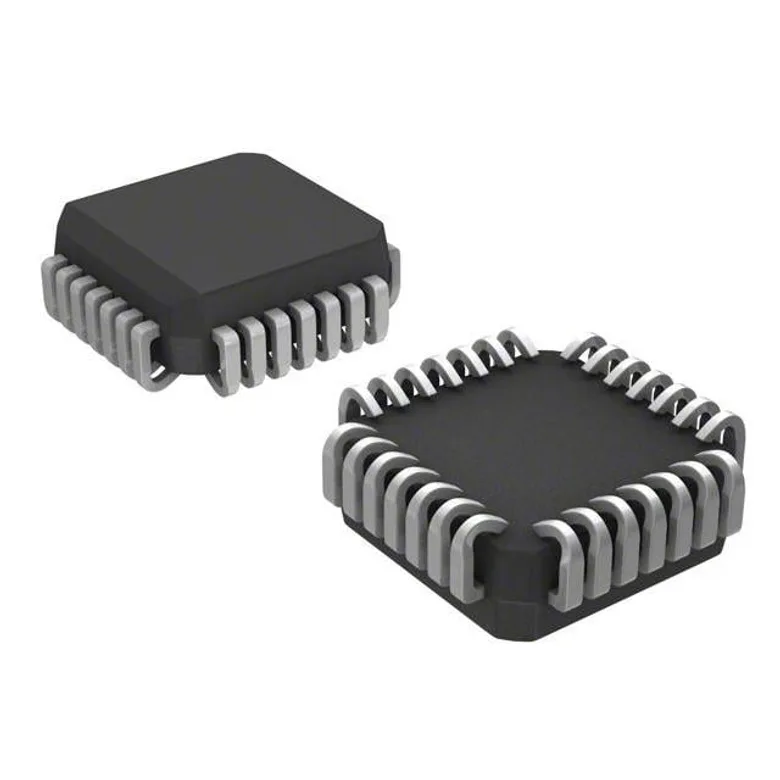

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATF20V8BQL-15JU
Manufacturer
Manufacturer Product Number
ATF20V8BQL-15JU
Description
IC PLD 8MC 15NS 28PLCC
Manufacturer Standard Lead Time Contact us
Detailed Description
20V8 Programmable Logic Device (PLD) IC 8 Macrocells 28-PLCC (11.51x11.51)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Speed
15 ns
DigiKey Programmable
Not Verified
Mounting Type
Surface Mount
Voltage - Input
5V
Supplier Device Package
28-PLCC (11.51x11.51)
Programmable Type
EE PLD
Number of Macrocells
8
Package / Case
28-LCC (J-Lead)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATF20V8BQL-15JU
1008428
ATF20V8BQL-15JU-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 46.000Â â‚« 46.000Â â‚«
46.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
228
46.000Â â‚«
10.488.000Â â‚«
MOQ 228 · Order multiple 228
Substitutes
ATF22V10CQZ-20JU
IC PLD 10MC 20NS 28PLCC
82.000Â â‚« Microchip Technology
