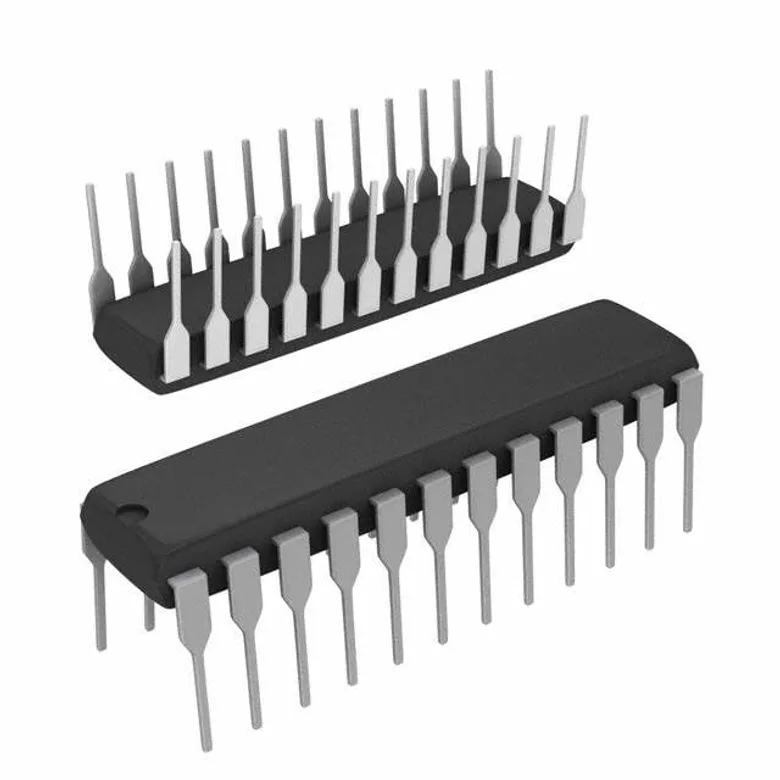

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATF20V8BQL-15PC
Manufacturer
Manufacturer Product Number
ATF20V8BQL-15PC
Description
IC PLD 8MC 15NS 24DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
20V8 Programmable Logic Device (PLD) IC 8 Macrocells 24-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Speed
15 ns
DigiKey Programmable
Not Verified
Mounting Type
Through Hole
Voltage - Input
5V
Supplier Device Package
24-PDIP
Programmable Type
EE PLD
Number of Macrocells
8
Package / Case
24-DIP (0.300", 7.62mm)
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATF20V8BQL-15PC
400221
ATF20V8BQL-15PC-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 33.000Â â‚« 33.000Â â‚«
33.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
570
33.000Â â‚«
18.810.000Â â‚«
MOQ 570 · Order multiple 570
Substitutes
ATF22V10CQZ-20PU
IC PLD 10MC 20NS 24DIP
82.000Â â‚« Microchip Technology
