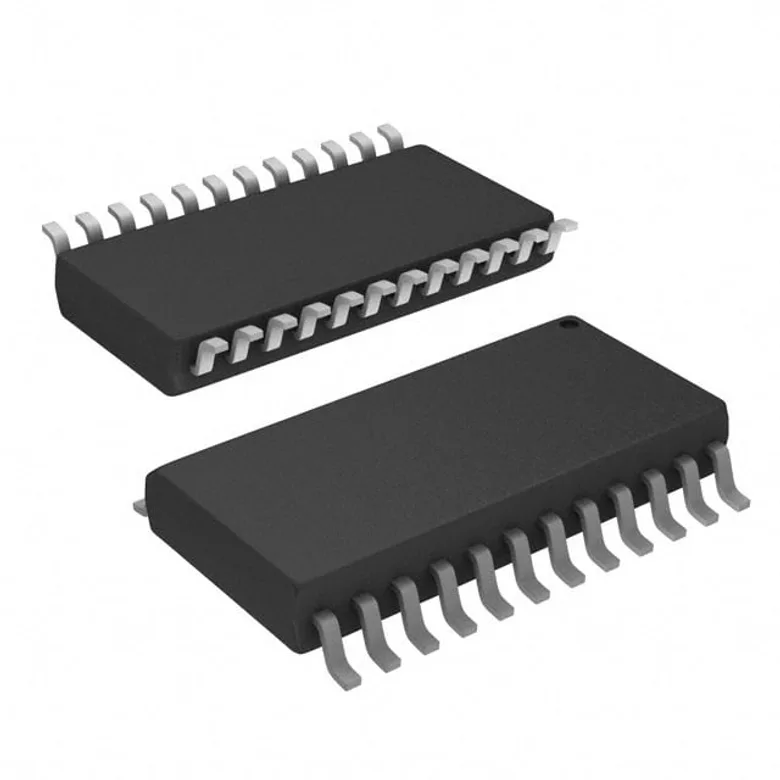

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATF750C-15SC
Manufacturer
Manufacturer Product Number
ATF750C-15SC
Description
IC CPLD 10MC 15NS 24SO
Manufacturer Standard Lead Time Contact us
Detailed Description
IC CPLD 10MC 15NS 24SO
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Product Status
Obsolete
Number of I/O
10
Operating Temperature
0°C ~ 70°C (TA)
DigiKey Programmable
Not Verified
Delay Time tpd(1) Max
15 ns
Mounting Type
Surface Mount
Supplier Device Package
24-SO
Voltage Supply - Internal
4.75V ~ 5.25V
Programmable Type
EE PLD
Number of Macrocells
10
Package / Case
24-SOIC (0.295", 7.50mm Width)
Documents & Media
Resource Type
Link
EDA Models
Design Resources
Environmental Information
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ATF750C-15SC
334658
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Substitutes
ATF750C-10SU
IC CPLD 10MC 10NS 24SOIC
131.000Â â‚« Microchip Technology
