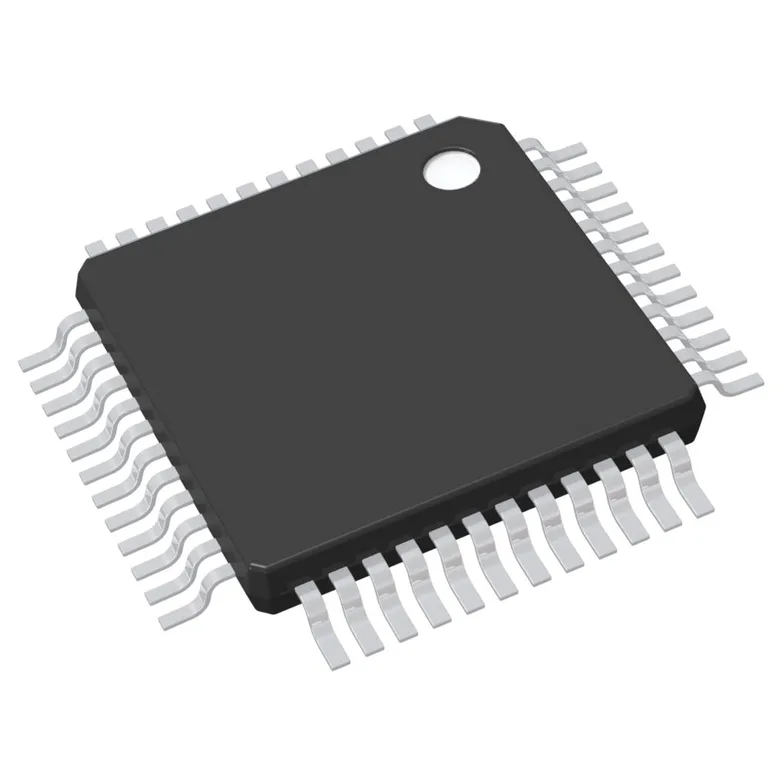

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Microchip Technology ATMEGA1609-AFR
Manufacturer
Manufacturer Product Number
ATMEGA1609-AFR
Description
IC MCU 8BIT 16KB FLASH 48TQFP
Manufacturer Standard Lead Time Contact us
Detailed Description
AVR megaAVR® 0, Functional Safety (FuSa) Microcontroller IC 8-Bit 20MHz 16KB (16K x 8) FLASH 48-TQFP (7x7)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Microchip Technology
Number of I/O
41
Operating Temperature
-40°C ~ 125°C
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
256 x 8
Core Processor
AVR
Data Converters
A/D 16x10b
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
48-TQFP (7x7)
Speed
20MHz
Program Memory Size
16KB (16K x 8)
RAM Size
2K x 8
Package / Case
48-TQFP
Voltage - Supply (Vcc/Vdd)
1.8V ~ 5.5V
Connectivity
I2C, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Environmental Information
Product Change Notices
Errata
Additional Resources
Attribute
Description
Part Number Alias
ATMEGA1609-AFR
9973118
ATMEGA1609-AFRCT-ND
ATMEGA1609-AFRDKR-ND
ATMEGA1609-AFRTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 8,905
Packaging Quantity Unit Price Ext Price
1 46.000 ₫ 46.000 ₫
46.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
46.000 ₫
46.000 ₫
25
45.000 ₫
1.125.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
46.000 ₫
46.000 ₫
25
45.000 ₫
1.125.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
38.000 ₫
95.000.000 ₫
MOQ 2,500 · Order multiple 2,500
Alternate Packaging
ATMEGA1609-AF
IC MCU 8BIT 16KB FLASH 48TQFP
45.000 ₫ Microchip Technology
